TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 30 Days

Brand: Sinuo

Product Description

TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus

This equipment complies with the test standard requirements of Clause 10.7 according to TZS 683:2022 and Clause 14.8 according to ES 573:2021.

Testing Procedure

The utensil shall be filled with water at 23°C + 2°C up to 90% of its nominated capacity, and the lid (if provided) placed in position.
The water shall be heated using an electric heating coil immersed in the water, so as to reach boiling point within 15 minutes to 20 minutes.
The temperature of the handle shall be measured not less than 15 minutes after the water starts to boil, by means of thermocouples fixed to points A and B indicated in figure 1.
The temperature shall be recorded and compared with those specified.

Figure 1: Thermocouple placement diagram

Technical Specifications

Parameter	Specification
Control	PLC control, 7" touch screen operation
Station	Single station
Platform size	400mm × 400mm
Temperature recording channel	4 channels (A point, B point, Ambient temperature, Reserve)
Heating temperature	Rt ~ 100°C
Temperature measuring method	By means of thermocouples fixed to points A and B indicated in figure 1
Test time	0-99H99M99S, can be preset on touch screen
Electric heating coil	Electric heating coil material: copper. The electric heating coil can be immersed in water. The electric heating coil on/off will be controlled to be capable of heating water till boiling through duration time from 15 min to 20min

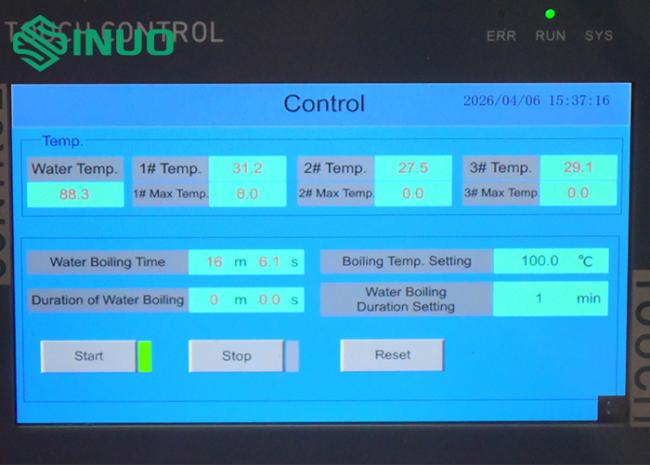

Temperature recording	Touch screen display, Temperature and time can be displayed
Power supply	AC220V, 50Hz, 3kW
