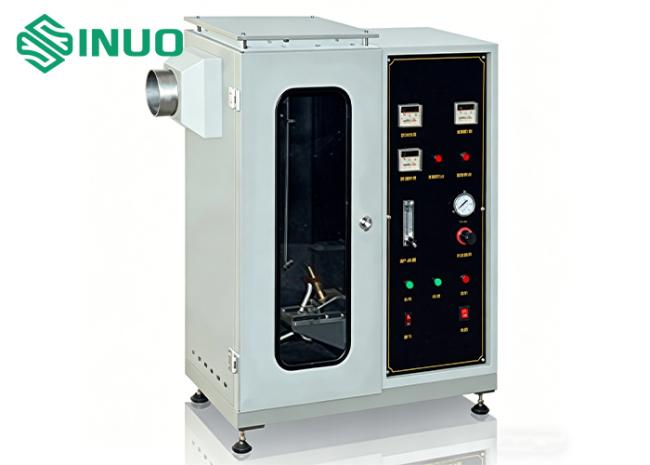

CSA C22.2 No. 149 Clause 6.14 Electric Toy Live Part Enclosure Flammability Test Chamber
Price:
Negotiable
MOQ:
1
Delivery Time:
30 Days
Brand:
Sinuo
Product Description
CSA C22.2 No. 149 Clause 6.14 Electric Toy Live Part Enclosure Flammability Test Chamber
This device is manufactured according to the standard of CSA C22.2 No. 149-1972 Electrically operated toys, Clause 6.14. It is mainly used for flammability performance testing of live part enclosures of household electric toys with rated voltage of 120V and below (including ultra-low voltage). The equipment features stable structure and precise control, meeting the flammability testing requirements for toy safety.
Product Features
Customized design: Strictly designed in accordance with standard structure, ensuring accurate and reliable test results
Precise control: Programmable time and cycle settings, high ignition accuracy
Safe and durable: Stainless steel cabinet with black high-temperature resistant internal coating, long service life
Easy operation: One-key ignition and automatic flame application, reducing manual errors
Factory direct supply: Original production by Sinuo, complete after-sales support
Technical Parameters
Test Chamber
| Material | Stainless steel with black internal coating |
|---|---|
| Structure | Open top and front, equipped with vertical specimen support and fixing device |
| Internal Dimensions | W305mm × D355mm × H610mm |
Burner
| Tube Inner Diameter | 9.5mm |
|---|---|
| Tube Length | 102mm |
| Installation Angle | 20° from vertical (20° between burner and horizontal plane) |
| Flame Height | Total vertical height: 127mm; internal blue cone height: 38mm |
Control System
| Ignition Time | 0~99.99h/m/s adjustable, accuracy: 0.05s |
|---|---|
| Ignition Cycles | 0~999 times adjustable |
| Ignition Mode | High-voltage electronic automatic ignition |
| Combustion Mode | Bottom edge ignition |
Gas Supply & Installation
- Gas type: Propane
- External gas connection
Overall Dimensions & Power
| Overall Dimensions | H1150mm × W350mm × D450mm |
|---|---|
| Power Supply | AC 220V, 50Hz, 500W |
Test Method (CSA C22.2 No. 149-1972)
1. Specimen Requirements
- Specimens shall be made of the same material as the product enclosure
- Thickness shall not exceed the minimum thickness of the enclosure
- Length and width shall be no less than 8 inches respectively
- 3 specimens per test group
2. Test Environment
- Conducted indoors without air disturbance
- Specimens are vertically fixed in the test shield, with the maximum test surface kept vertical; flame acts on the outer surface
3. Flame Adjustment
- When the burner is vertical, adjust the total flame height to 5 inches (127mm)
- Internal blue cone height: 1.5 inches (38mm)
4. Flame Application Position
- Burner inclined at 20°
- Blue cone tip aligned 3 inches above the lower end of the specimen
- Or aligned with the center of the test side width and the lower 1/3 height position
- Flame vertical plane perpendicular to the specimen test surface
5. Test Procedure
- Apply flame 5 times, 15 seconds each time
- Interval between two flame applications: no less than 15 seconds
- Terminate the test immediately if the specimen burns continuously for more than 30 seconds
6. Acceptance Criteria
- Drippings from the specimen stop burning after falling at least 6 inches
- Continuous burning of the specimen does not exceed 30 seconds within 1 minute after the first four flame applications and the fifth flame application
- After the fifth flame application, the specimen has no holes or damage, and does not affect product safety requirements
Safety Precautions
- The equipment must be used in a well-ventilated environment free of flammable materials.
- Regularly inspect the gas pipeline to prevent leakage.
- Do not approach the flame area during the test to avoid scalding.
- Non-professionals are not allowed to disassemble or modify the equipment without authorization.
- Turn off the gas and power supply after use, and clean the equipment after cooling.
