IEC 60529 Full-featured IPX1-IPX8 Integrated Waterproof Testing System
Product Overview
The SN4418 Integrated IPX1~8 Waterproof Degree Test System fully complies with IEC 60529:2013 and IEC60335-1 Clause 15 international standards. It integrates vertical drip, oscillating tube, spray nozzle, hose spray, immersion and deep immersion functions to perform complete IPX1/2/3/4/5/6/7/8 waterproof performance tests in one machine. It is widely used for waterproof testing, waterproof grade certification, reliability verification of electronics, lamps, outdoor devices, automotive parts, security equipment and more.
Key Features
- Full IP rating coverage: IPX1 ~ IPX8 all-in-one solution
- Fully compliant with IEC 60529:2013 & IEC60335-1 standards
- Intelligent control: Mitsubishi PLC + 7-inch color touch screen
- Automatic constant temperature, constant flow, constant pressure control
- Durable structure: stainless steel + industrial aluminum alloy
- Complete accessories: turntable, lift bracket, filtration system
- Centralized control cabinet for all test units
System Configuration
| No. | Name | IP Code | Remark |
|---|---|---|---|

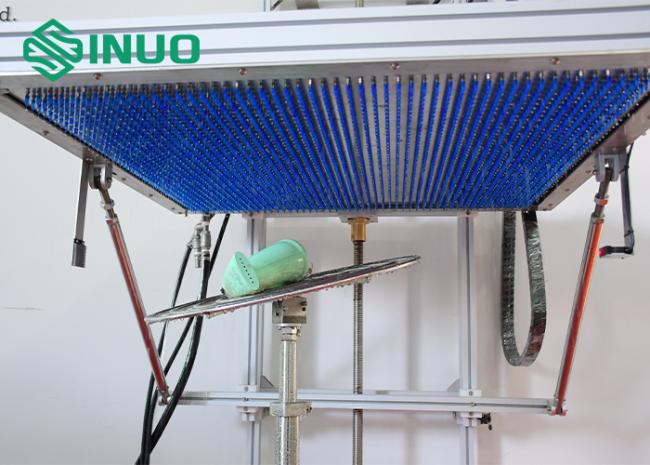

| 1 | Vertical Rain Drip Test Apparatus | IPX1~2 | Drip area: 1000mm×1000mm |

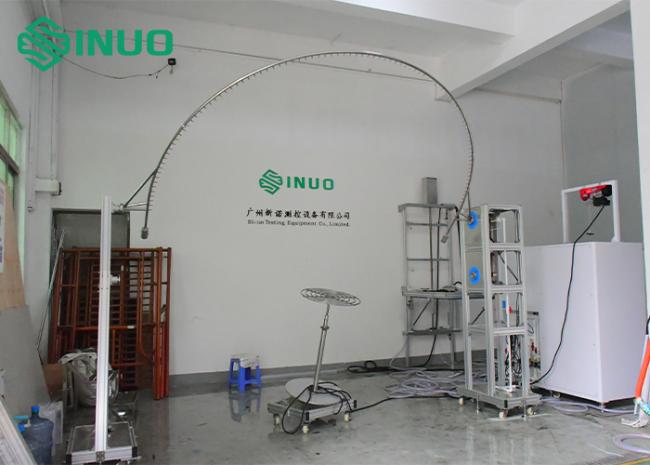

| 2 | Oscillating Tubes Test Apparatus | IPX3~4 | R200~R1600mm stainless steel tubes |
| 3 | Spray Nozzle | IPX3~4 | Handheld auxiliary spray |
| 4 | Hose Nozzle | IPX5~6 | High-pressure water spray test |

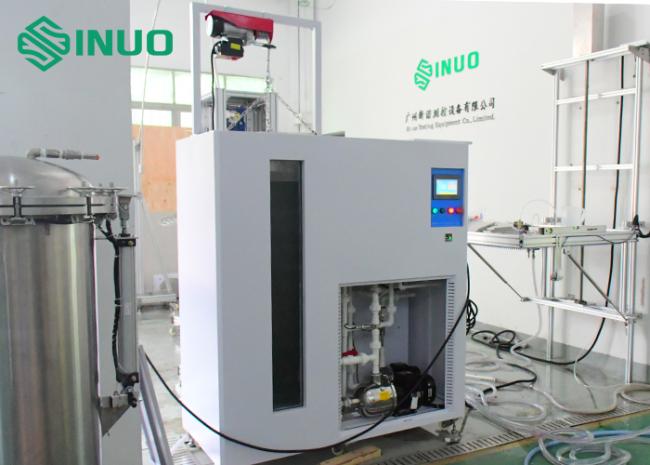

| 5 | Integrated Immersion Chamber & Water Tank & Control Cabinet | IPX7 | Inner size: 650×600×1500mm |
| 6 | Deep Immersion Tank | IPX8 | φ600×1000mm pressure vessel |
| 7 | Turntable | IPX1~6 Accessory | φ600mm, tiltable 0°/15° |
Technical Parameters
Vertical Rain Drip Test Apparatus (IPX1/2)
| Application | Applies to conduct IPX1, IPX2 testing. |
| Rain area | 1000mmX1000mm |
| Tank material | Stainless steel |
| Dripping aperture | ￠0.4mm |
| Hole distance | 20mm |
| Rainfall Flow | 1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min). |
| Water dripping height | 200mm (automatically control by the test equipment) |
| Test time | 10Min, can be set according to the need |
| Draining | Automatically emptying the tank water after the test is completed |
| Body material | Industrial aluminum alloy |
| Dimensions (LxDxH) | 1100X1200X2800mm |
| Machine structure | Wall Mount |
| Air compressor | Silent air compressor |
Oscillating Tubes Test Apparatus (IPX3/4)
| No. | Item | Parameters |
|---|---|---|
| 1 | Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| 2 | The size of the oscillating tube | Standard coming with R200mm, R400mm, R600mm, R800mm, R1000mm R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel |
| 3 | Needle hole | Φ0.4mm |
| 4 | Included angle of two holes | IPX3:120°; IPX4:180° |
| 5 | Oscillating tube swing angle | Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° cannot achieved during actual testing, if without turntable, then 360° can be achieved) |
| 6 | Swing speed | IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°); |
| 7 | Water flow | Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/min per hole) |
| 8 | Testing time | 0.01S～99 hours 59mins,can be preset |
| 9 | Pressure gauge | 0~0.25MPa |
| 10 | Site requirements | Dedicated IP waterproof test room, the ground should be flat with illumination 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation |
| 11 | The area | According to the oscillating tube chose |
Spray Nozzle (IPX3/4)
| No. | Item | Parameter |
|---|---|---|
| 1 | Water supply | Water flow rate is 50～150kpa clean water without inclusion. |
| 2 | Spray nozzle parameters | external diameter: Ф102mm spherical diameter: SФ75.5mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total. The hole diameter: Ф0.5mm It is made of brass. |
| 3 | Water flow | 10L/min±5%, adjustable by flow meter (flow meter is not included in this item, optional) |
| 4 | Range of pressure gauge | 0～0.4Mpa |
| 5 | Baffle | Removable |
| 6 | Pressure gauge | 0~0.25MPa |
| 7 | Site requirements | Dedicated IP waterproof test room, the ground should be flat with illumination With good function of inflow and drainage. |
Hose Nozzle (IPX5/6)
| No. | Item | IPX5 | IPX6 |
|---|---|---|---|
| 1 | Water supply | Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless-steel water tank and pressurized equipment | Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless-steel water tank and pressurized equipment |
| 2 | The nozzle diameter | Ф6.3mm | Ф12.5mm |
| 3 | Water flow | 12.5±0.625L/min,Flow meter is adjustable | 100±5 L/min,Flow meter is adjustable |
| 4 | The distance from jet nozzle to enclosure | 2.5~3m | 2.5~3m |
| 5 | Testing time | Not less than 1min/m²(not less than 3 mins) | Not less than 1min/m²(not less than 3mins) |
| 6 | Pressure gauge | 0~0.25MPa | 0~0.25MPa |
| 7 | Site requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. |
Integrated Immersion Chamber & Control Cabinet (IPX7)
| Item | Parameter |
| Inner chamber size | 650mm×600mm×1500mm |
| Water tank volume | Approx. 500L |
| Temperature control | Room temp ~ 65℃ (±3℃, PID) |
| Lifting distance | 0~1200mm |
| Load capacity | 100kg |
| Controller | Mitsubishi PLC + 7-inch touch screen |
| Power | Three-phase AC 380V, 50Hz |
| Dimensions | 1400×750×1600mm |
Deep Immersion Tank (IPX8)
| Item | Parameter |
| Tank size | φ600mm×1000mm |
| Pressure range | 0~5bar (customizable) |
| Pressure gauge | 0~6bar, 0.25 class |
| Test time | 0~99min |
| Max pressure | 5bar |
| Connection | 3/4 high-pressure steel hose |
Turntable (IPX1~6 Accessory)
| Item | Parameter |
| Diameter | φ600mm |
| Speed | 1rpm |
| Tilt angle | 0°, 15° |
| Rotation | 90° / continuous |
| Material | Industrial aluminum alloy |
| Dimensions | 800×800×250mm |
Frequently Asked Questions
Q1: What IP tests can SN4418 perform?
A: It supports full-range waterproof tests: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, IPX8.
Q2: Which international standards does this system comply with?
A: It fully meets IEC 60529:2013 and IEC60335-1 Clause 15 for product waterproof certification.
Q3: Do I need extra control cabinets?
A: No. All units are centrally controlled by the integrated IPX7 control cabinet.
Q4: What is the difference between IPX7 and IPX8?
A: IPX7 is normal-pressure temporary immersion; IPX8 is high-pressure deep immersion up to 5bar.
Q5: What are the installation requirements?
A: Requires a dedicated waterproof test room with flat floor, drainage ditches, clean tap water and 10A waterproof leakage protection.
Q6: Can test parameters be customized?
A: Yes. Time, flow, pressure, temperature, angle can all be precisely set on the touch screen.
Q7: Is the equipment rust-proof?
A: Key parts use stainless steel; body uses industrial aluminum alloy. It is waterproof, rust-proof and long-lasting.
