IEC 62133-1 High And Low Temperature Cycling Test Chamber for Battery Reliability Testing
The High And Low Temperature Cycling Test Chamber is specially designed for environmental reliability testing of batteries, electronic products, electrical components, and industrial materials under extreme temperature conditions. Complying with IEC 62133-1:2017, IEC 62133-2, IEC 60086-3, IEC 60086-4, and IEC 60086-5 standards, this chamber simulates high temperature, low temperature, temperature cycling, and damp heat environments to evaluate product safety, durability, and performance stability. It is widely used in lithium battery testing laboratories, consumer electronics manufacturing, automotive battery industries, research institutions, and quality inspection centers.
Main Features:
- Precise programmable temperature cycling control
- Stable high and low temperature simulation
- Uniform chamber temperature distribution
- Intelligent touch screen controller
- Suitable for battery reliability and environmental testing
- Supports long-duration continuous operation
Technical Specifications
| Dimensions | |
|---|---|
| Nominal Volume | 408L |
| Inner Dimensions | W800 × H850 × D600mm |
| External Dimensions | W1275 × H1930 × D1823mm |
| Weight | Approx. 560kg |
| Performance Parameters | |
|---|---|
| Test Environment Conditions | Ambient temperature +25℃, relative humidity ≤85%, no sample in test chamber |
| Test Methods | IEC60068-2-1:2007, IEC60068-2-2:2007, IEC60068-2-30:2005, IEC60068-2-78:2012 |
| Temperature Range | -40℃ to +150℃ |
| Humidity Range | 20-98% RH (Temperature: 20℃-85℃) |
| Temperature Fluctuation | ±0.5℃ |
| Humidity Fluctuation | ≤2.5% |
| Temperature Uniformity | ≤±2.0℃ |
| Temperature Deviation | ≤±1.0℃ |
| Humidity Deviation | ≤±3% |
| Heating Rate | -40℃ to +150℃ average no-load 5℃/min |
| Cooling Rate | +150℃ to -40℃ average no-load 5℃/min |
| Load Conditions | Batteries |
| Operating Noise | ≤70dB (A) |
Temperature & Humidity Range Diagram
Structural Characteristics
| Feature | Specification |
|---|---|
| Insulation Enclosure Structure | External wall: A3 plate spraying; Inner wall: brushed stainless steel SUS#304; Box insulation: 100mm high temperature resistant rigid polyurethane foam |
| Bottom Structure Strength | Weight capacity: ≤100Kg/m² |
| Air Conditioning Channel | Stainless steel long-axis centrifugal fan: 2 units/90W; Includes fan, heater, evaporator, drainage device, pressure balance port, adjustable air guide plate, temperature sensor |
| Standard Configuration | Window: 300x400x40mm 3-layer vacuum tempered glass; Flat embedded handle; Door hinge: SUS #304 imported hinge; LED energy-saving lamp; Lead hole: φ100mm 1pc |
| Chamber Door | Single-piece door, opens outwards; Safety door locking mechanism; Electric heating to prevent condensation; Hollow glass observation window (W300×H400mm) |
Safety Features
Refrigeration System
| Component | Specification |
|---|---|
| Working Method | Air-cooled mechanical compression cascade refrigeration |
| Heating & Cooling Devices | Low-temperature low-noise scroll compressor; Air cooling method |
| Heat Exchange Device | Two-stage refrigeration system; SWEP refrigerant heat exchange design (Made in Sweden SUS#316) |
| Thermal Load Regulation | Automatic cooling coal flow control device; Synchronized with German/Japanese technology |
| Refrigeration Compressor | Low temperature low noise scroll compressor |
| High Efficiency Components | AC&R compound turbulent aluminum fin condenser and evaporator; Imported Chiming refrigeration accessories |
| Refrigerant | R404a (ozone depletion index: 0) |
Electrical Control System
| Parameter | Specification |
|---|---|
| Controller Model | Cold balance touch intelligent programmable temperature controller |
| Screen | 7-inch true color touch screen |
| Control Modes | Program/Fixed value |
| Temperature Range | -90.00℃ to 200.00℃ (error ±0.2℃) |
| Humidity Range | 1.0% to 100% RH (error ±1% RH) |
| Communication Interface | RS232/RS485 (max distance 1.2km) |
| Program Capacity | 120 programs, 12000 segments total |

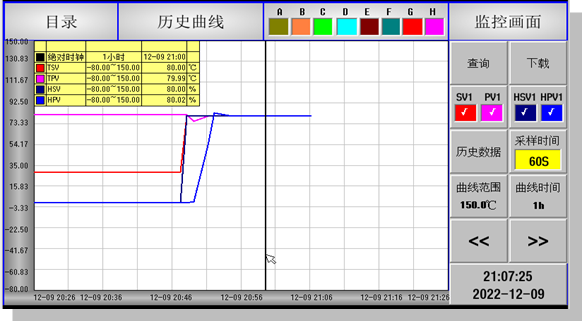

Controller Display Examples
Safety Protection Systems
| System | Protection Features |
|---|---|
| Refrigeration System | Compressor overheating, overcurrent, overpressure protection |
| Test Chamber | Adjustable over-temperature protection, air conditioning channel limit over-temperature, fan motor overheating |
| Electrical System | Leakage protection, heating tube dry burning protection, overload and short circuit protection, power failure protection |

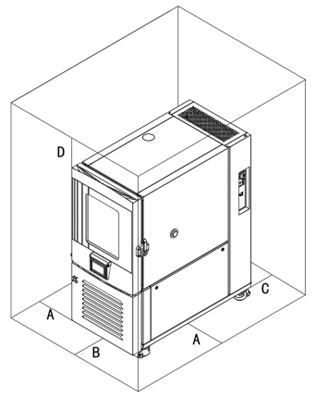

Installation Requirements
| Requirement | Specification |
|---|---|
| Installation Site | Flat ground, well ventilated, no flammable/explosive/corrosive gases; No strong electromagnetic radiation; Drainage floor drain within 2 meters; Ground bearing capacity ≥800kg/m² |
| Water Source | Purified water or treated tap water required |
| Environmental Conditions | Temperature: 5℃-35℃; Relative humidity: ≤85%; Air pressure: 86kPa-106kPa |
| Power Supply | AC380V three-phase four-wire + protective ground wire; Voltage: 380±10V; Frequency: 50±0.5Hz; Power capacity: ~18kW |
