IEC 60884-1 6-Station Socket Temperature Rise Test Equipment For Household Plug & Socket Test
Price:
Customized
MOQ:
1
Delivery Time:
30 Days
Brand:
Sinuo
Product Description

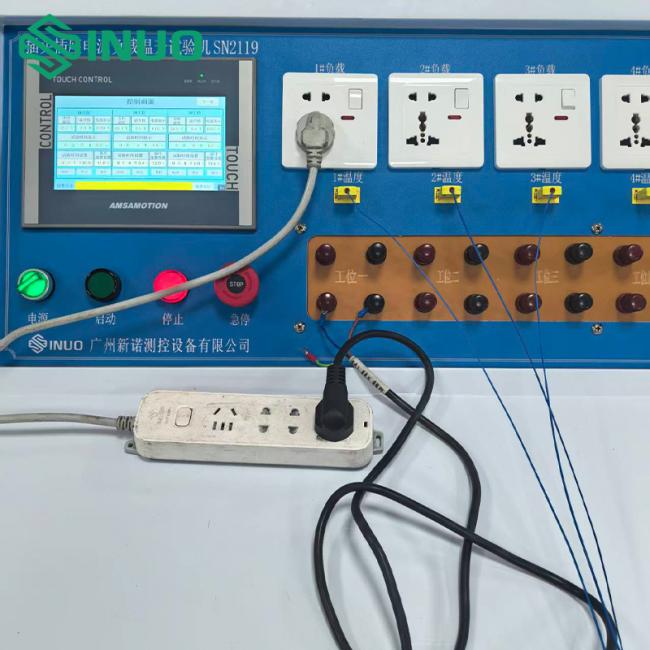

IEC 60884-1 6-Station Socket Temperature Rise Test Equipment For Household Plug & Socket Test
The Plug & Socket Temperature Rise Tester is a high-precision, PLC-controlled testing solution engineered to evaluate the thermal performance of household electrical accessories, including plugs, sockets, and extension cords. Built to meet key international and Chinese safety standards, it simulates real-world operating conditions to measure temperature rise under load, ensuring your products meet regulatory requirements and consumer safety benchmarks. With 6 independent test stations and intuitive touchscreen operation, it is designed for efficiency, accuracy, and ease of use in quality control labs and manufacturing facilities.
Key Compliance Standards
- GB/T2099.1-2021: Household and similar purposes plugs and sockets - Part 1: General requirements, Clause 19
- GB/T2099.7-2024: Safety specifications for household and similar extension socket-outlets, Clause 6.2.8.2
- GB16915.1-2014: Switches for household and similar fixed-electrical installations - Part 1: General requirements, Clauses 17 & 18
- IEC 60884-1:2006: Plugs and socket-outlets for household and similar purposes - Part 1: General requirements, Clause 19
- IEC 60669-1:2007: Switches for household and similar fixed-electrical installations - Part 1: General requirements, Clause 17
Core Features
- Multi-Station Efficiency: 6 independent, adjustable test stations to simultaneously evaluate up to 6 different socket types (e.g., 2-pin, 3-pin configurations), reducing testing time by 50% vs. single-station units.
- PLC & Touchscreen Control: Intuitive interface for easy parameter setup (current, test duration) and real-time monitoring, minimizing manual errors and simplifying operation.
- Precision Current Control: 0-30A adjustable test current with 0.1A resolution, delivering consistent, repeatable results for temperature rise analysis.
- Direct Sample Connection: External thermocouple design allows direct attachment to test samples, ensuring accurate temperature data collection.
- Built-In Safety Functions: Programmable timing with range options (0~99.99s / 99.99m / 99.99h) and time-up alarm to prevent over-testing and ensure operator safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SN2119-6 |
| Control System | PLC with touchscreen operation |
| Testable Samples | Household plugs, multi-position sockets, extension cords (supports up to 6 socket types simultaneously) |
| Test Stations | 6 independent, adjustable stations |
| Test Current Range | 0-30A (adjustable, displayed on touchscreen) |
| Current Resolution | 0.1A |
| Test Voltage | <12V |
| Current Display Accuracy | ±0.5%FS ±2 digits |
| Timing Function | Programmable ranges: 0~99.99s / 99.99m / 99.99h; with time-up alarm |
| Temperature Measurement | Via user-supplied temperature monitoring instrument (external thermocouple connection) |
| Equipment Structure | External thermocouple connection to test samples |
| Dimensions (W × D × H) | ~600 × 600 × 600 mm |
| Weight | ~100 kg |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Operating Environment | Temperature: 0-40°C; Humidity: 30%-90% RH |
Applications
- Electrical Accessory Manufacturers: Quality control and pre-certification testing for plugs, sockets, and extension cords.
- Third-Party Testing Labs: Compliance verification against IEC and GB standards for global market access.
- R & D Departments: Thermal performance evaluation during product design and optimization.
- Certification Bodies: Safety assessment for household electrical accessories.
Q&A Section
Q1: Which standards does this tester comply with?
A1: The tester meets key safety standards including GB/T2099.1-2021, GB/T2099.7-2024, GB16915.1-2014, IEC 60884-1:2006, and IEC 60669-1:2007, covering the most common requirements for household electrical accessories in global markets.
Q2: How many samples can I test at once?
A2: The unit features 6 independent test stations, allowing you to test up to 6 different socket configurations (e.g., 2-pin, 3-pin) simultaneously. This significantly improves throughput for high-volume testing needs.
Q3: What is the accuracy of the test current?
A3: The test current ranges from 0 to 30A with a resolution of 0.1A, and the display accuracy is ±0.5%FS ±2 digits. This precision ensures reliable temperature rise measurements for compliance testing.
Q4: How is temperature rise measured during the test?
A4: Temperature rise is measured using a user-supplied temperature scanner connected via external thermocouples, which are directly attached to the test samples. This method provides accurate, real-time temperature data throughout the test cycle.
Q5: Is the equipment easy to operate?
A5: Yes. The tester is controlled by a PLC system with a user-friendly touchscreen interface, allowing you to set test current, duration, and other parameters with minimal training. The built-in time-up alarm also adds an extra layer of safety and automation.
