Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus
Electric Car Accessories Mechanical Strength 1～6J Energy Pendulum Impact test Apparatus
Standards & Clauses:

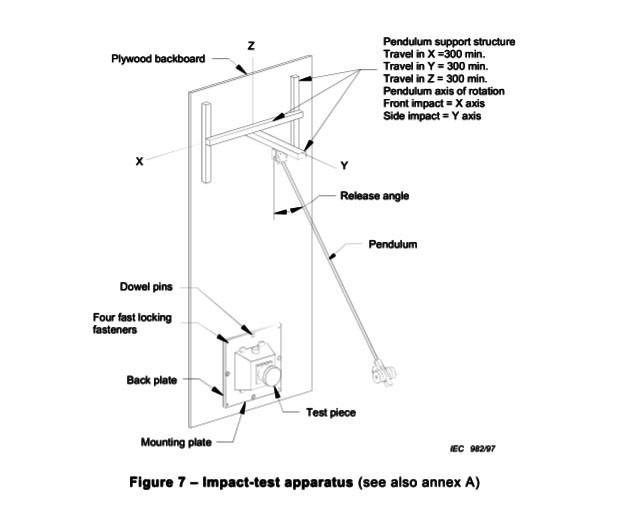

IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.2, figure 7
Samples and Restrictions:
Electric vehicle charging interfaces (plug, socket-outlets, vehicle connectors), industrial purpose plugs, socket-outlets and couplers.
Application:
To verify the mechanical strength of the vehicle plugs, socket-outlets and couplers accessories.
Test Principle:
The equivalent mass striking element is free released at a certain height, after the conversion of gravitational potential energy to kinetic energy, to achieve the required impact energy.
Structure:
The mounting bracket can be adjusted from front to back and left to right, and the impact angle is adjustable.
Dimensions & Weight:
Dimensions: about W500*D500*H1500mm
Weight: about 60kgs
Technical Parameters:
| Operation Method | Manual operation |
| Impact Weight | 50*16mm; 304# stainless steel 0.25Kg impact weights |
| Combined Impact Weight |
0.5Kg (low energy) (2 pieces of 0.25Kg weights), 1Kg (high energy) (4 pieces of 0.25Kg weights) |
| Impact Energy | 1～6J(The impact hammers can be interchangeable) |
| Hammer Anvil | Ф50 |
| Impact Angle | 25°, 35°, 36°, 42°, 47°, 52° |
| Pendulum Support Structure | Can move back and forth, left and right and can rotate 90° |
| Pendulum Material | Steel pipe with outer diameter of 10 mm and wall thickness of 1.0 mm |
| Pendulum Length | 1m, from the pivot to the center of the impact element |
| Mounting Plate | 8mm thick stainless-steel plate, made according to the customer's specified aperture and position, default one set |
| Impact Height | 776mm, 833mm |
| Vertical Board | Plywood |
| X/Y/Z Axis Stroke | Movable range is greater than 300 mm |
