IEC 60884-1 Apparatus For Checking Damage To Conductors 10±2 Rpm
IEC 60884-1 UL 498 Apparatus for Checking Damage to Conductors
Equipment overview:
Compliant with standards: IEC60884-1: 2013 clasue 12.2.5 and 12.3.10 Figure 11 and Table 9, UL 498. etc.
It is used to examine that terminals with screw clamping shall be so designed and constructed that they clamp the conductor(s) without undue damage to the conductor(s).
Technical Characteristics:
| Control and operation method | Electric control, key operation |
| Test station | Single |
| Sample fixture | Universal |
| Test speed | 10±2 rpm, adjustable, compatible with 9 rpm required by UL standard |
| Rotation diameter | 75mm and 76mm two holes, compatible with UL standards |
| Test time | 0～999.9min, can be preset, the default is 15min required by the standard |
| Weights |
0.3,0.4,0.7,0.9,1.4,2.0,2.9,4.5,6.8,8.6,9.5,10.4,14,15,16.8,20,22.7kg Note: According to Table 5, configure weights for 1-300mm² wires, for required load above 8.6kg should be combined |
| Height distance | 250~500mm |

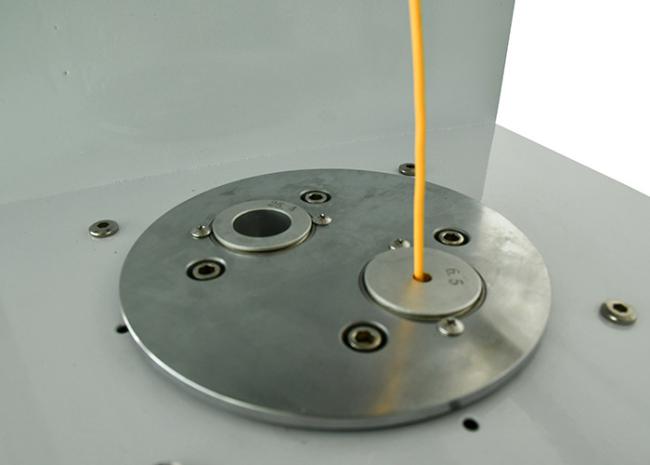

| Bushing diameter |
6.5,9.5,13,14.5,15.9,19.1,22.2,25.4,28.6mm Note: Configure bushings for 0.2-300mm² wires according to GB14048.1 Table 5 |
| Height adjustment method | Handwheel adjustment lifting mechanism |
| Dimensions of the equipment | 1000×500×1300 (mm) W×D×H, the weight of the equipment: depends on the weights configuration |
Weight distribution table:
| Weight with hook | One piece of each 0.3kg, 0.4 kg, 0.7 kg, 0.9 kg, 1.4 kg, 2 kg, 4.5 kg, 2.9 kg, 6.8 kg, 8.6 kg |
| Weight with through hole | 0.7kg*2pcs, 0.9kg*3pcs, 2.3kg*1pc, 3.2kg*2pcs, 4.5kg*1pc, 4.6kg11pc |
| 2.9kg | 2kg+0.9 kg |
| 6.8kg | 4.5 kg +2.3 kg |
| 9.5kg | 8.6 kg +0.9 kg |
| 10.4kg | 8.6 kg +0. kg 9x2pcs |
| 14kg | 8.6 kg +4.5 kg +0.9 kg |
| 15kg | 8.6 kg +3.2 kg x2pcs |
| 16.8kg | 8.6 kg +4.5 kg +2.3 kg +0.7 kg x2pcs |
| 20kg | 8.6 kg +4.6 kg +4.5 kg +2.3 kg |
| 22.7kg | 8.6 kg +4.5 kg +4.6 kg +2.3 kg +0.9 kg x3pcs |
