IEC60884-1 Flexible Cable Cord Anchorages Torque Test Apparatus

System overview

Complies with IEC 60884-1:2006 clause 23.2 and table 18, VDE0620 clause 23.2 and table18, etc.

It is used to check wear resistance of plug, mobile socket mobile sockets, fixed parts fitted with conductors and their connectors under sheath protection without stress, including twisting, at the end of the conductor.Using weights to apply force to the specimen with a certain force arm to meet the standard torque value.

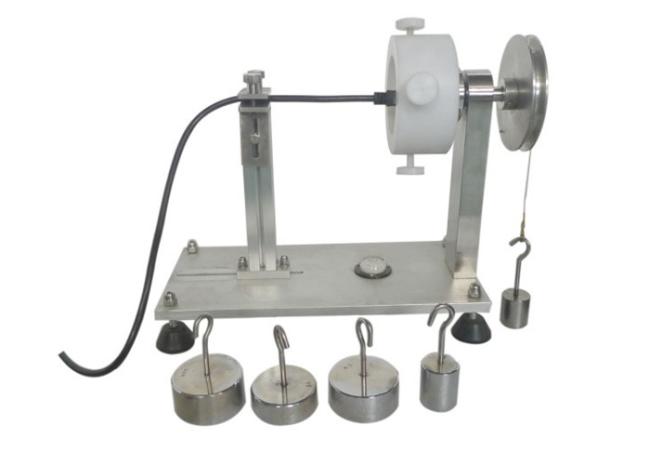

Structure

Using weights to apply force to the specimen with a certain force arm to meet the standard torque value.

Outer size:about:300×200×300(mm)W×D×H,equipment weight:10kg

Working temperature:0-40℃, humidity:30%-90%

Technical Parameters

Torque Disc Diameter	100mm
Torque Calculation	G.L unit N.m,can achieve 0.1,0.15,0.25,0.35,0.425N.m torque
Apply Force Time	0-9999times,adjustable,default 100times
Load Weights	2N*1,3N*1,5N*1,7N*1,8.5N*1

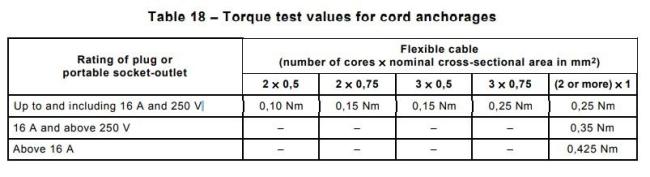

Torque test value for cord anchorages
