20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1
20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1
Standards & Clauses:
This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

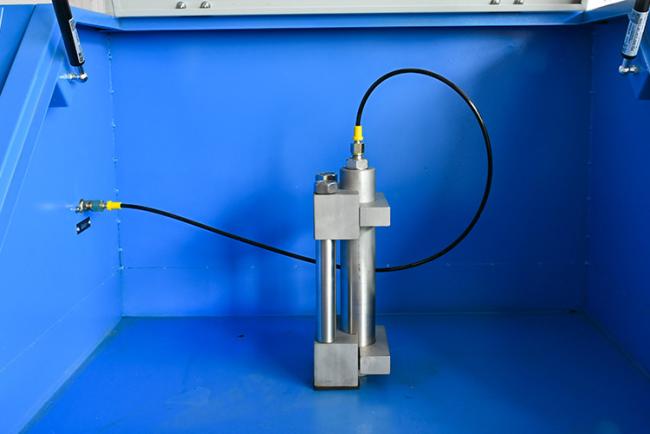

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.
Technical Parameters:
|
Test container
|
Volume >100ml, pressure bearing capacity >15MPa, made of stainless steel |
| Power supply | Match client's local power supply |
| Pressure hold time | 0~99s can be set |
| Maximum test pressure | 20MPa |
| Pressurization method | Manual pressurization |
| Test pressure range | 0~20MPa±0.5MPa, can be adjusted |
| Boost rate | 100KPa/s |
| Display mode | Digital display |
Test Principle:
The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
