IEC 60309-1 Fig 7 Green Car Accessories Mechanical Strength Impact Test Apparatus
Price:
Customized
MOQ:
1
Delivery Time:
30 Days
Brand:
Sinuo
Product Description

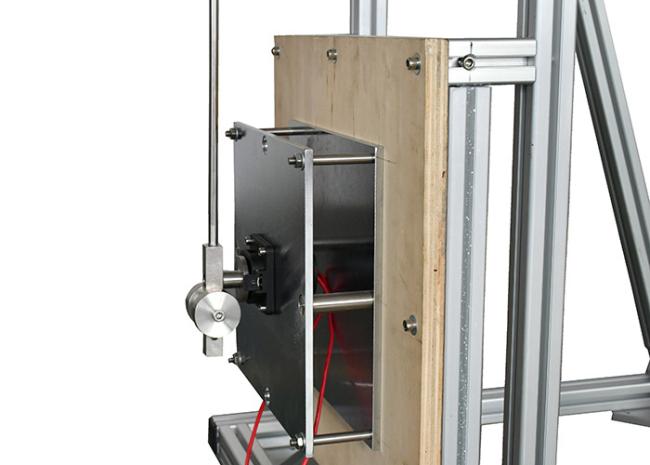

IEC60309-1 Green Car Accessories Mechanical Strength Impact Test Apparatus
Equipment Introduction:
The test equipment is designed and manufactured according to IEC60309-1: 2012 clause 24.2 and figure 7, etc. It is used to verify the mechanical strength of the vehicle plugs, socket-outlets and couplers accessories.
The experimental principle is that after the gravitational potential energy is converted into kinetic energy, the equivalent mass impact weights will be freely released at a certain height to achieve the required impact energy.
The mounting bracket can be adjusted in three-axis, front and back, up and down, and left and right, which has strong applicability.
The experimental principle is that after the gravitational potential energy is converted into kinetic energy, the equivalent mass impact weights will be freely released at a certain height to achieve the required impact energy.
The mounting bracket can be adjusted in three-axis, front and back, up and down, and left and right, which has strong applicability.
Technical Parameters:
| Operation Method | Manual operation |
| Impact Weight | 50*16mm; 304# stainless steel 0.25Kg impact weights |
| Combined Impact Weight | 0.5Kg (low energy) (2 pieces of 0.25Kg weights), |
| Impact Energy | 1～6J (The impact weights can be interchangeable) |
| Hammer Anvil | Ф50 mm |
| Impact Angle | 25°, 35°, 36°, 42°, 47°, 52° |
| Pendulum Support Structure | Can move back and forth, left and right, up and do and can rotate 90° |
| Pendulum Material | Steel pipe with outer diameter of 10 mm and wall thickness of 1.0 mm |
| Pendulum Length | 1m, from the pivot to the center of the impact element |
| Mounting Plate | 8mm thick stainless-steel plate, made according to the customer's specified aperture and position, default one set |
| Impact Height | 776mm, 833mm |
| Vertical Backboard Material | Plywood |
| X/Y/Z Axis Stroke | Movable range is greater than 300 mm |
Counterweight and impact energy:
Choose the counterweight and drop angle according to the impact energy. If the impact energy is ≤2J, add two counterweights at the upper hole position and with one weight on each side, the total mass is 0.5kg; if the impact energy is >2J, add two more counterweights at the lower hole position and with two weights on each side, the total mass is 1Kg.
Counterweights of the impact energy and the impact angle are shown in following Table:
| Impact energy(J) | Counterweights(Kg) | Release angle |
| 1 | 0.5 | 25° |
| 2 | 0.5 | 35° |
| 3 | 1 | 36° |
| 4 | 1 | 42° |
| 5 | 1 | 47° |
| 6 | 1 | 52° |
