Clause 5.3.2, 5.4.10, V.1.4 Figure V.3 Blunt Probe Telecom Test Probe IEC 62368-1
Price:
Negotiable
MOQ:
1
Delivery Time:
3~5 Days
Brand:
Sinuo
Product Description

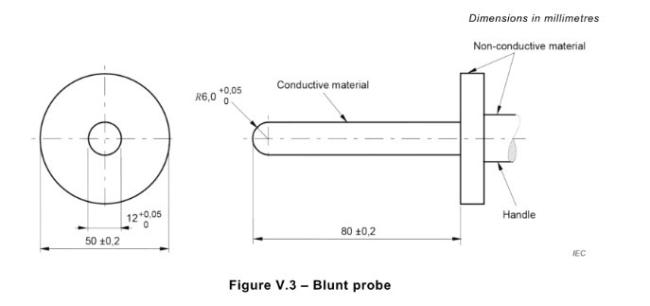

IEC 62368-1 Clause 5.3.2, 5.4.10, V.1.4 and Figure V.3 Blunt Probe
Product Information:
Standard:The test probe is designed and manufactured according to the standard requirements of IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3, UL6500 figure B.1, and etc.
Application:It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.
Test sample:Information technology equipment.
Feature:Nylon handle + stainless steel probe.
Technical Parameters:
| Standard | IEC 62368-1 |
| Clause | 5.3.2, 5.4.10, V.1.4 and figure V.3 |
| Probe length | 80±0.2 mm |
| End radius | R6+0.05 0 mm |
| Probe diameter | Φ12+0.05 0 mm |
| Baffle diameter of the handle | 50±0.2 mm |
