IEC 62368-1 Clause 5.4.4 Metal Mandrel Test Apparatus
Price:
Negotiable
MOQ:
1
Delivery Time:
10 Days
Brand:
Sinuo
Product Description
IEC 62368-1 Clause 5.4.4 230° Rotating Angle Corrosion-resistance Metal Mandrel Test Apparatus
Product Information:
This test apparatus conforms to IEC 62368-1:2018 clause 5.4.4, IEC60950-1:2013 clause 2.10.5.8, Annex AA, figure 14~16, IEC60558-1 Fig6, etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.

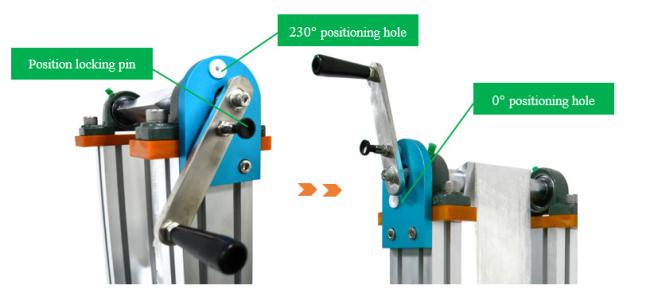

This test apparatus has the mechanical limits in the position of 0o and 230o to make sure the accuracy of the testing angle.
Technical Parameters:
| Applied Standard | IEC 62368-1 |
| Clause | 5.4.4 |
| Mandrel Material | Made of corrosion-resistance metal |
| Bracket Material | Aluminum profile |
| Weights | 1N*2,50N*2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen) |
| Force of the two terminals of material foil | 1N (two sets of 1N weights, also the clamping device for metal foil) |
| Rotating angle of the mandrel | 230 o |
| Height of the mandrel to the bottom of the device | 500mm |
