IEC 62368-1:2018 Clause 5.3.2, V.1.5 and Figure V.4 Wedge Probe
Product Information:
The wedge probe conforms to the standard requirement of IEC 62368-1:2018 clause 5.3.2, 8.5.4.3, V.1.5 and figure V.4, IEC 60950-1 Fig NAF.2(S5366)and NAF.3(S5370), BS 60950.1108/260/CD and etc.
It is used to test whether the slot openings can be touched by people. The test samples include information technology equipment.
Technical Parameters:
| Applied standard | IEC 62368-1 |
| Applied clause | 5.3.2, V.1.5 and figure V.4 |
| Probe material | Stainless steel |
| Applied Specimen | Document/media Shredders |
Part of Dimension:

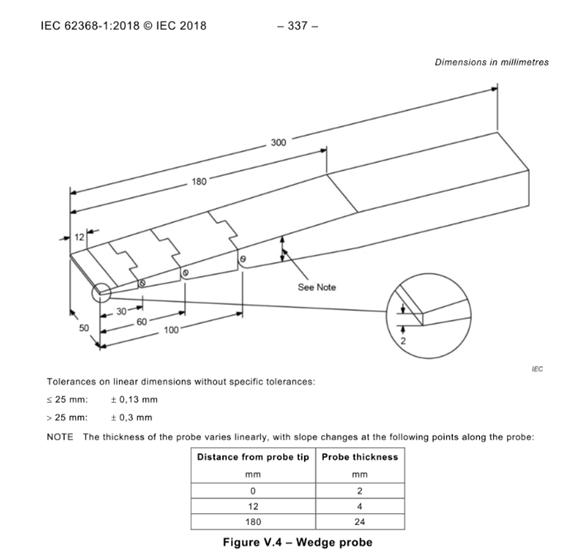

The thickness of the probe varies linearly, with slope changes at the following points along the probe:
| Distance from probe tip, mm | Probe thickness, mm |
| 0 | 2 |
| 12 | 4 |
| 180 | 24 |
