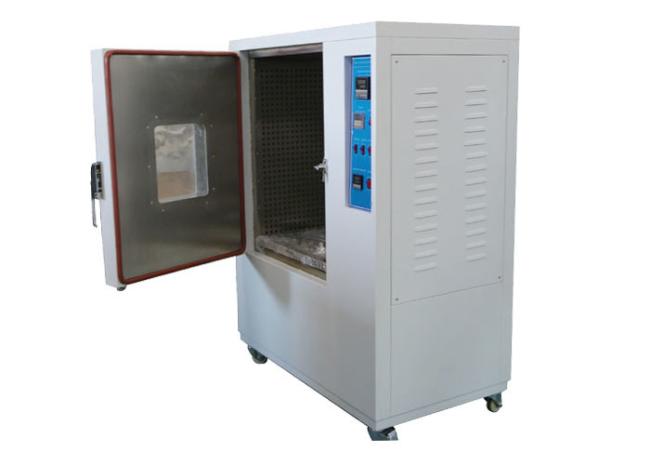

IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L
Product Information:
It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and etc.
Features:
1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.
2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.
3. P.I.D. control system, double over-temperature protection, safe and reliable.
4. The temperature setting is simple, and the operation is more convenient.
Attachment tray, can be adjusted freely.
Technical Parameters:
| Applied standard | IEC 60065 |
| Applied clause | 12.1.6 |
| The range of temperature | RT ~300℃ |
| Inner chamber size | 500*600*800mm (L*W*H) |
| Outer chamber size | 1060*700*1445mm |
| The test shelves | 2 trays |
| Timer | 0~9999 H/ M / S |
| Temperature resolution | 0.1 ° C |
| Temperature fluctuation | ±1 °C |
| Distribution error | ±2.5 °C |
| Air circulation | Natural convection |
| Natural ventilation | 8~20 times/H |
| Rotation speed of the test sample | 5~10r.p.m |
| Observation window | Square window |
| Inner chamber material | It is made of SUS#304 stainless steel |
| Outer chamber material | Made of electrostatic spray paint |
| Net weight | Approx. 120Kg |
| Power supply | AC 220V±10%, 50Hz |
