IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3
IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3
Product information:

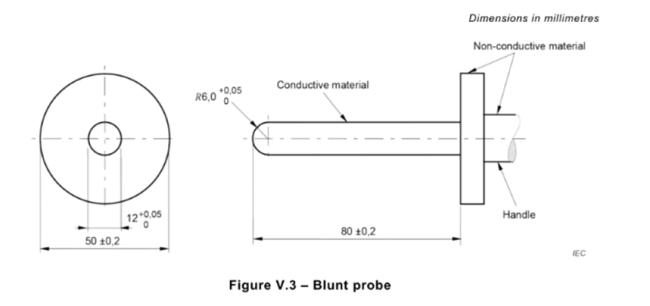

The blunt probe of figure V.3 conforms to IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3 and UL6500 figure B.1.
It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.
Technical Parameters:
| Probe Length | 80 mm |
| Probe End Radius | R6 mm |
| Probe Diameter | Φ12 mm |
| Baffle Diameter of Handle | Φ 50 mm |
| Probe material | Stainless steel |
| Handle material | Nylon |
Sinuohave a full range of test probes according to different standards, and also can offer customized service.
Test procedures and operation
Please refer to the relevant standards.
Take IEC 60950 clause 2.1.1.1 as an example:
This test probe is applied to openings, without appreciable force, in every possible position, except that floor-standing equipment having a mass exceeding 40 kg is not tilted.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:
Notice
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
3. Be careful of electric shock.
