MERA 12.8V 270Ah 3.5KWh LiFePO4 Battery DIY Kits

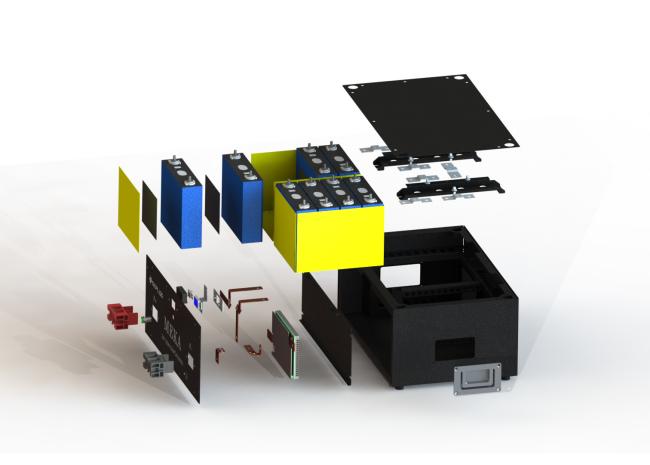

Parts List

A complete set to assemble a 12.8V 270Ah 3456Wh DIY Lithium Iron Battery with 3.2V 135Ah Prismatic Cells. Ideal for house storage.

•   8 * 3.2V 135Ah LiFePO4 Prismatic Battery Cell
•   1 * 12V 100A 4S Seplos Smart BMS
•   1 * Battery Case
•   1 * Capacity Indicator
•   1 * BMS Wire for Capacity Indicator
•   1 * BMS Wire for Power Switch
•   1 * BMS Wire for Battery Monitoring
• 10 * EVA Foam Tape
•   1 * Copper Bus Bars
•   8 * Aluminum Bus Bars
•   2 * Epoxy Fiberglass A
•   4 * Epoxy Fiberglass B
•   4 * Epoxy Fiberglass C
•   1 * 58V 150A Fuse
•   2 * 111*69mm handle
•   2 * 100A Battery Terminal Black/Red
•   Screws

Features

Nominal Voltage: 12.8V

Nominal Capacity: 270Ah

Cell Configuration: 4S2P

Dimension:460*300*185mm

Benefits:

Easy Assembly with detailed installation guides, accessible to everyone.

Simplified maintenance, if a cell is out of service, it is possible to replace the cell without changing the complete pack.

Lithium iron has a lifespan of 6000+ charge cycles.

Especially suitable for home storage, boat, van, vehicles, solar installation, etc.

The installation manual and wiring diagram are provided when purchasing the kits.

Precautions:

The battery pack should be stored in a dry and ventilated place. The operating temperature is between -20℃ - 60℃.

The positive and negative metal terminals must be protected in order to avoid a short circuit due to a falling metal object on the pack.

The components on the BMS should be protected in order to avoid any damages due to a falling metal object on the surface of the BMS board.
