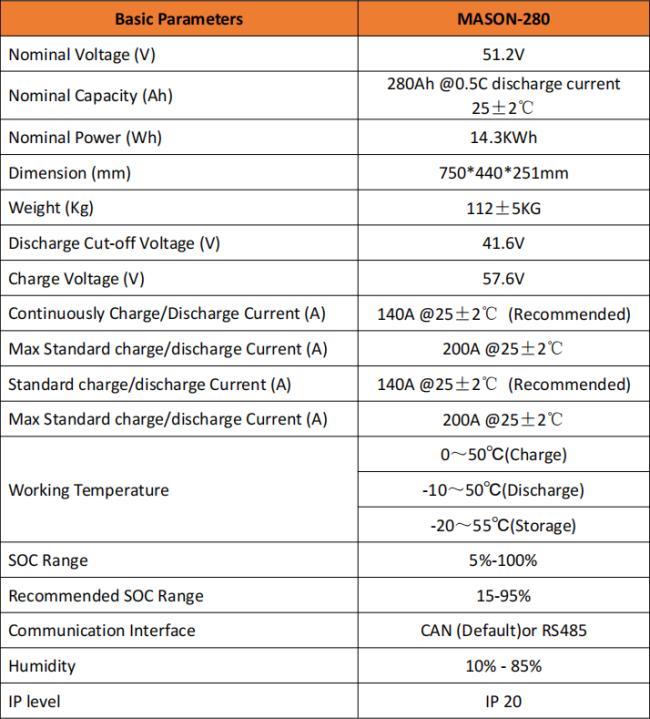

MASON DIY Unit (suitable EVE 280Ah cell)BOX stack type without cells

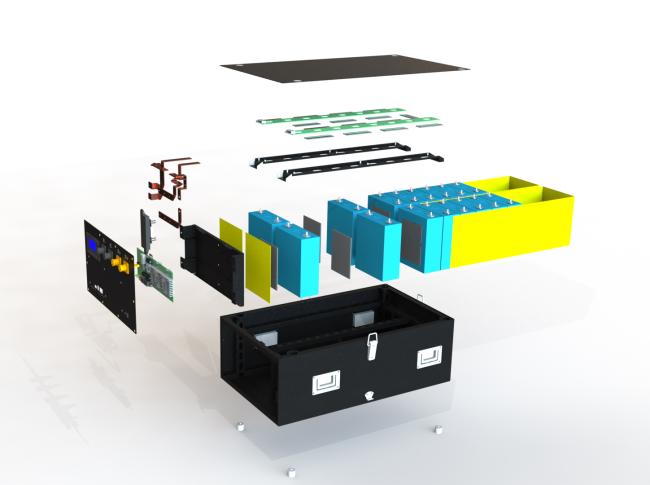

Parts List

• 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)​
• 1 * 48V 200A 16S SEPLOS BMS
• 1 * 58V 400A Fuse
• 4 * Handle
• 2 * PCB Board for BMS and Cell Connection
• 3 * Upper and Lower Latch lock
• 1 * LCD Screen
• 1 * LCD Screen Sticker
• 4 * Button Cap
• 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
• 2 * Battery Terminals (P+ Terminal and P- Terminal)

• 6 * Copper bus bars (BMS connection)
• 15 * Aluminum bus bars (Cell connection)
• 10 * Epoxy sheet (Between cell and the case)
• 26 * EVA Tape (Between cells)
• 1 * PC sheet (Top cover)

• 12 * Phillip Hex M4 * 8mm (PCB board fix)
• 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
• 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
• 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
• 12 * Phillip Pan M5 * 10mm (Latch fix)
• 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
• 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
• 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
• 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
• 8 * Phillip Round M5 * 10mm + Washer

Communicate inverters list:

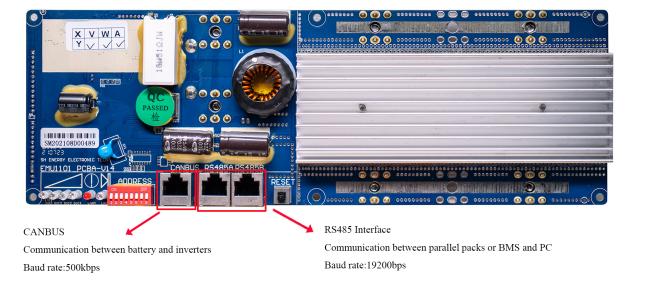

Now our CANBUS communication board supports these brands of inverters, and our BMS has a built-in CANBUS protocol of matching inverter brands, which can be automatically matched or manually switched:

The default is the Pylontech CANBUS protocol

Goodwe

Growatt(The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid), please contact the salesperson)

Victron

LUXPOWER

Sofar

Deye

Sermatec

Renac

TBB POWER

Solis

SMA

Foxess

​IMEON

If the inverter brand is not listed, please ask your inverter supplier for the protocol definition. And sent it to us, we'll help confirm that.

Detailed installation guide:
