PUSUNG-R 48V 100Ah residential solar power energy home battery storage system

51.2V 100AH battery pack for home solar energy storage.

This battery pack fits 19 inch server cabinet.

Connected in parallel to expand capacity. Max. 16 packs in parallel

CAN-Bus operates at 500kpbs baud rate. And compatible with multi-brand inverters.

RS485 operates at 19200pbs baud rate. Comes with upper computer system software to monitor battery status in real time.

Retailer price at USD2109/pack.

Got distributors in USA, Spain, Austria and South Africa, Germany, Denmark...​

Specification:

• Model: PUSUNG-R LiFePO4 Battery Pack

• Battery Pack Power: 5.12KWh

• Battery Pack Capacity: 100Ah

• Battery Pack Voltage: 51.2VDC

• Battery Pack Charging Voltage: 54.5V

• Battery Pack Discharging Lower Voltage: 41.6V

• Battery Pack Standard Charging Current: 100A

• Battery Pack Max. Charging Current: 100A

• Battery Pack Standard Discharging Current: 100A

• Battery Pack Max. Discharging Current: 100A

• Depth of Discharge: 100%

• Communication Protocol: CAN (If you need RS485 communication, Please specify. And the lead time is about 1 month. Please confirm before ordering.)

• Battery Pack Configuration: 16 Cells in Series

• Cycle Life: ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD

• Weight: 52KG ( 114.64Lbs.)

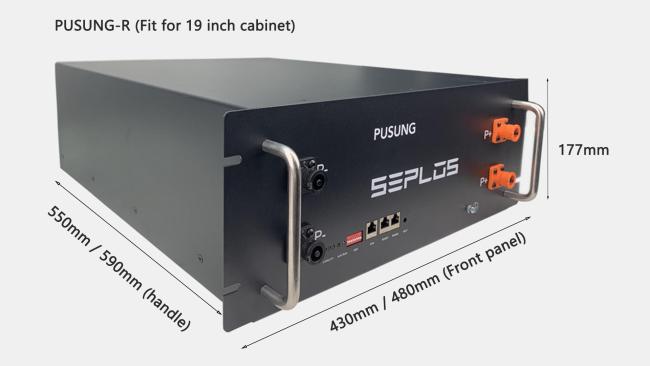

• Dimension: 500*177*430mm (19.68*6.97*16.93inch)

• Operation Temperature: -10 ~ 50 ℃ (14F ~ 122F)

• Storage Temperature: -20 ~ 55 ℃ (-4F ~ 131)

• Products Certificates: TUV(IEC62619, IEC62040), CE, ROHS

• Transportation Certificates: UN38.3, MSDS

​

Communicate inverters list:

Goodwe

Growatt (Growatt inverter comes with both RS485 protocol and CAN protocol, please confirm your inverter types before purchase.)

Victron

LUX POWER

Sofar

DEYE

Sermatec

RENAC

TBB POWER

SOLIS

SMA

FoxESS

Voltronic (Voltronic inverter comes with RS485 protocol, to customize RS485 protocol BMS, lead time about 1 month, please confirm with your sales representative before purchase.)

Phocos (Phocos inverter comes with RS485 protocol, to customize RS485 protocol BMS, lead time about 1 month, please confirm with your sales representative before purchase.)

If the inverter is not listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help confirm that.

Applications:

Energy Storage

• Solar, wind storage system / on/off-grid energy storage / Business and household

Back-up System and UPS

• Telecome base / CATV system / Computer server center / Medical instrument / Military Equipment

Other Applications

• Security and electronics / LED light / Emergency light
• RV Motorhome / Golf carts battery / Boat Marine Yachts / Electric Skateboard
• LED Backup / Engine starting battery...

To become a distributor, And get more benefit.

If you're doing solar storage business, and have your own store, or you're willing to set up an energy storage battery factory, and wanna have a try at our battery pack, please contact us. Click 'Send message' window at the right or send us an inquiry at the end of this page.
