MASON 51.2V 135Ah LiFePO4 Battery DIY Kits

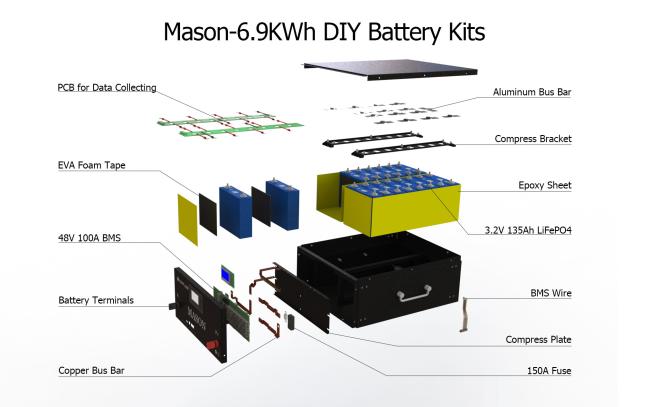

Parts List

• 16 * 3.2V 135Ah LiFePO4 Prismatic Battery Cell - 6000+ times cycle life
•   1 * 48V 100A 16S Seplos Smart BMS
•   1 * Battery Case and parts
•   1 * LCD Screen
•   1 * BMS Wire for Capacity Indicator
•   1 * BMS Wire for Power Switch
•   1 * BMS Wire for Battery Monitoring
• 20 * EVA Foam Tape
•   5 * Copper Bus Bars
• 15 * Aluminum Bus Bars
•   2 * Epoxy Fiberglass A
•   4 * Epoxy Fiberglass B
•   4 * Epoxy Fiberglass C
•   1 * 58V 200A Fuse
•   2 * 111*69mm handle
•   2 * 100A Battery Terminal Black/Red
•   Screws

Features

Battery Case Dimension: 420*530*200mm

The battery cell is dangerous goods, therefore, the battery cell and other parts will be shipped separately.

Communicate inverters list:

Goodwe

Growatt (RS485 protocol and CAN protocol, confirm the models and protocols before purchase.)

Victron

LUX POWER

Sofar

DEYE

Sermatec

RENAC

TBB POWER

SOLIS

SMA

FoxESS

Voltronic (RS485 protocol, need to customize)

Phocos (RS485 protocol, need to customize)
