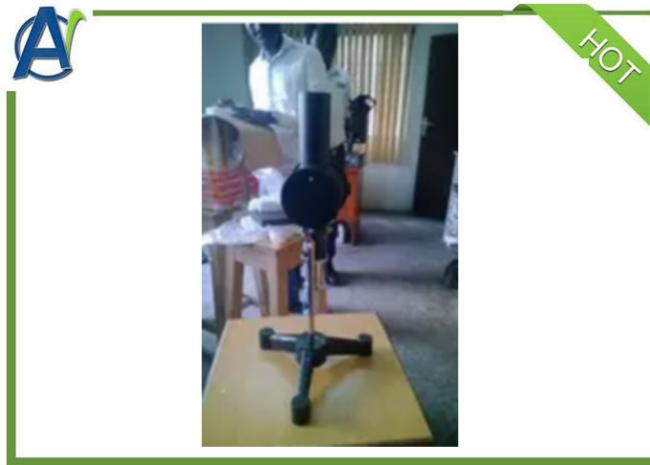

ISO 3014 Smoke Point Test Apparatus for Kerosene and Jet Fuel
Price:
USD800/Unit
MOQ:
1 Unit
Delivery Time:
15 days
Brand:
AI
Product Description
Introduction
This smoke point tester is made according to GB/T382-83 and ASTM D1322.
It is used to test smoke point of kerosene and jet fuel in a standard lamps and lanterns, to measure the maximum height of smokeless flame in burning conditions.
Main Features
1. Sample combustion in the standard lamp, flame height changes reflected on the mm scale background
2. The structure of the instrument is compact and integrity
3. No circuit element
4. Repeatability of determination results is much higher.
Technical specifications
1.Scale:should be in white on the black glass.Its central 2 mm of white or black stripes will stick vertically divides scale into two parts.
Measuring range is 50mm,1mm for scale division, marked each10mm with number, and long line for each 5mm.
2.Wick catheter:top should be accurately with zero on the scale at the same level.
3.Lifting seat: total distance is less than 10 mm, moves smoothly and evenly.
4.Oil container:consist of oil container ontology,lamp wick tube and air conduit. Inside dimension of oil reservoir body is 21.25±0.05, length 109.0±0.05;inner diameter of lamp wick tube 4.7±0.05,length 82.0±0.05;inner diameter of air conduit is 3.5±0.05,length 90.0±0.05.
Measuring range is 50mm,1mm for scale division, marked each10mm with number, and long line for each 5mm.
2.Wick catheter:top should be accurately with zero on the scale at the same level.
3.Lifting seat: total distance is less than 10 mm, moves smoothly and evenly.
4.Oil container:consist of oil container ontology,lamp wick tube and air conduit. Inside dimension of oil reservoir body is 21.25±0.05, length 109.0±0.05;inner diameter of lamp wick tube 4.7±0.05,length 82.0±0.05;inner diameter of air conduit is 3.5±0.05,length 90.0±0.05.
