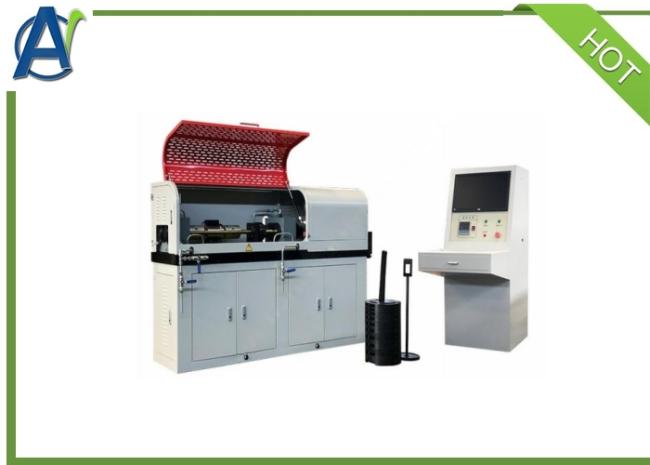

ASTM D5182-97 FZG Gear Wear Test Machine
The test bench consists of the following key components:
• Main Unit: Comprising the base, power source (motor), drive gearbox, torsion shaft, test gearbox, water cooler, torque-loading fixture, torque-loading device, level gauge, heating unit, temperature sensors, oil drain system, and torque speed acquisition sensors.
• Torque Loading System
• Oil Lubrication System
• Cooling Water Circulation System
• Electrical Control Cabinet
• GB/T 13672-92
• GB/T 13672-92
• SH/T 0366-1992
• ASTM D5182-97(2014)
|
Specification
|
AIC-5182
|
|
Max. torque
|
1Kn. m
|
|
Max. loading class
|
13 classes
|
|
Temperature control accuracy
|
±2℃
|
|
Motor power
|
6.5/8kw
|
|
Motor speed
|
1450/2880 r/min
|
|
Gear box volume
|
1.25L
|
|
Heating power
|
0.5X3=1.5kw
|
|
Dimensions
|
1650X450X1150mm
|
Working Conditions
1.The fluctuation range of the power supply voltage should not exceed the rated value ± 10% and the fluctuation range of the frequency should not exceed 2% of the rated value.
2.Test machine should be installed horizontally and the installed base should be smoothly. The horizontal error for the host workbench aspect direction should not exceed 0.2/1000.
3.Room temperature 10 º C-35 º C.
4.The environment no vibration, no strong magnetic interference and non-corrosive media.
5.Relative humidity less than 80%.
FAQ
1.What's the delivery time?
About 60days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
