ASTM D97 Low Temperature Tester, solidifying point, pour point, cloud point test of petroleum products ASTM D2500

Name: ASTM D97 Low Temperature Tester, solidifying point, pour point, cloud point test of petroleum products ASTM D2500
Brand: Advanced Instruments Co.,Limited

Price Negotiable

Price: US$2000-3000/set

MOQ: 1 set

Delivery Time: 15days

Brand: Advanced Instruments

Product Description

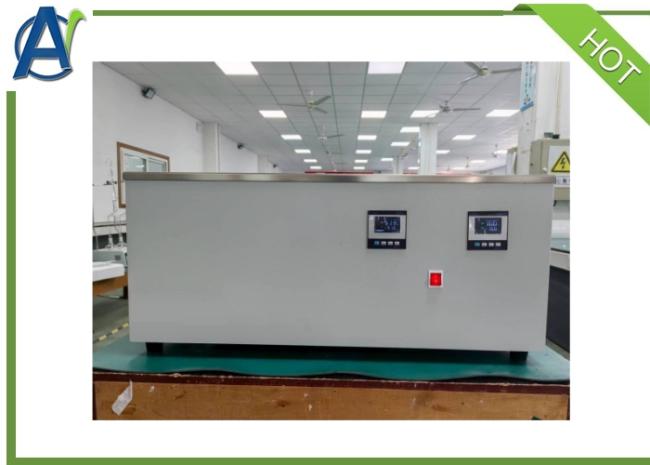

The ASTM D97 Low Temperature Pour Point and Cloud Point Test instrument is designed and made as per GB/T3535 "Standard Test Method for Pour Point of Petroleum Oils" and GB/T6986 "Standard Test Method for Cloud Point of Petroleum Oils" in the National Standard of People's Republic of China. It is suitable to determine pour point and cloud point of petroleum oils.

Product Advantages

1.This Petroleum Products Low Temperature test machine is mainly composed of two parts: desktop chassis and tipping bucket cold tank, with a compact structure, reasonable layout, and simple and convenient operation.

2.And it adopts dual environmentally friendly compressor system, which has good cooling effect and extreme cooling limit up to -70°C. Cold Tank I.: Room temperature ~-51°C, ±1°C, Cold Tank II.: Room temperature ~-70°C, ±1°C.

3.The high-precision liquid crystal temperature controller adopted, the accuracy can reach ±1°C, and the cold bath temperature is uniform and stable.

4.The metal bath structure is adopted, which is smaller than the traditional alcohol bath, more environmentally friendly and safe.

5.The special groove structure is adopted, which can make the test tube tilt 45 degrees during the freezing point test, the gear is fixed, and the test data is reliable.

6. The freezing point, pour point, and turbidity point of petroleum products can be determined according to the method specified in the standard, and LC-2 can also be selected for cold filtration point test to achieve multiple uses of one machine.

The Technical Specifications and Parameters

Power supply	AC (220 V-240) V, 50 Hz
Temperature controlling range of cold trough	(1) Cold trough I: room temperature～-51 ℃, ±1 ℃, the temperatures of two baths are equal. (2) Cold trough II: room temperature～-70 ℃, ±1 ℃, the temperatures of two baths are equal.
Refrigeration system	a refrigeration compressor of new type
Ambient temperature	≤30 ℃
Relative humidity	≤85%
Power consumption	≤1000 W
Dimension	800mmx580mmx400mm

FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
