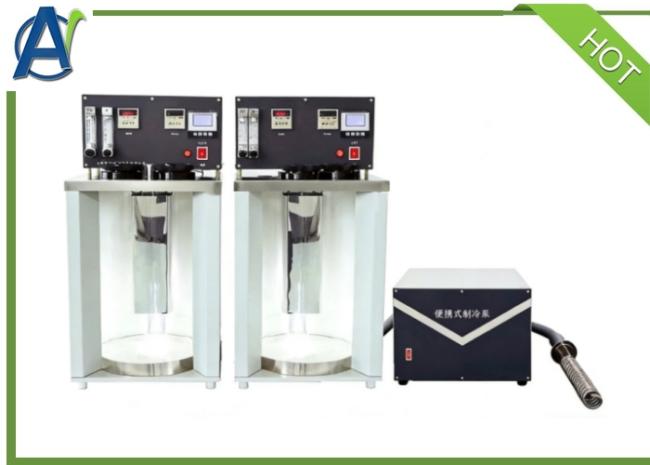

ASTM D892 Foam Characteristics Apparatus of Lubricating Oils
General Introduction
2.After setting the instrument's thermostatic point, the instrument will automatically enter the thermostatic state without further adjustments. The temperature controller also has a parameter correction function.
3.This Foam Characteristics Apparatus has an automatic timing reminder function.
4.It uses a high-precision LCD temperature controller and sensor, with accurate temperature control and a precision of ±0.5℃.
5.The gas flow control system is composed of an oxygen pump, rotor flowmeter, etc., with reliable performance.
6.Foam test equipment includes: a cylinder with a capacity of 1000ml; a stopper: rubber stopper matched to the cylinder's circular top opening; a diffuser head:selected ceramic ball structure; ensuring data accuracy.
7.The bottom of the instrument is equipped with an LED light strip that illuminates the test section for easy observation.
| Power supply |
AC(220±10%)V, 50Hz |
| Total power consumption |
≤2700W |
| Air flow rate |
(94±5)ml/min,adjustable |
| Temperature control range for high temperature bath |
(Room temp.~99.9)℃ |
| Temperature control range for low temperature bath |
(5~99.9)℃ |
| Temperature control accuracy |
±0.5℃ |
| Timer | 5min and 10min,accurate to second |
| Ambient temperature | (15~35)℃ |
| Relative humidity | ≤85% |
| Dimension |
Main unit:690mm×460mm×700mm |
| Net weight |
48kg |
FAQ
1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
