ASTM D5800 Automatic Evaporation Loss Appratus of Lubricating Oils by the Noack Method B Analyzer Tester
General Introduction

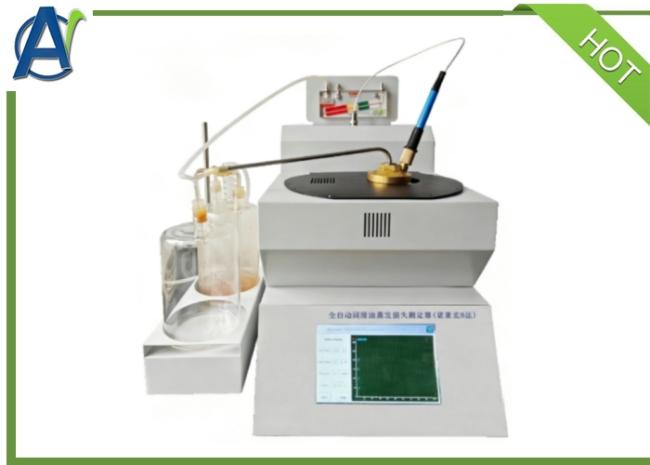

The Automatic Lubricating Oil Evaporation Loss Tester (Noack B method) is designed and manufactured according to Industry standard NB/SH/T 0059-2010 and ASTM D5800 Standard test method for evaporation loss of lubricating oils by the Noack B method.It's suitable to determine lubricating oil.
1).Equipped with a 7-inch full-color high-performance HD TFT touchscreen
2).Highly sensitive touch response and smooth operation
3).User-friendly interface layout for clear operation and data display, enhancing user experience
1).Desktop integrated structure, saving space
2).Low-inertia heating system with H62 copper heating base and annular heating belt
3).Ensures high temperature control accuracy and stability
3.High-quality Imported Components
1).Features high-end components such as French imported inclined tube manometer and American Filter air filter
2).Ensures stable and reliable equipment performance
4.Efficient Vacuum System
1).Special customized miniature vacuum pump with advanced performance
2).Stable negative pressure, meeting high-precision experimental requirements
5.High-precision Temperature and Pressure Control
1).High sample temperature control accuracy
2).Automatically adjusts pressure difference during testing
3).Maintains pressure within 20mm ± 0.2mm Hg range
4).Ensures accuracy of experimental results
2).Optional independent data processor for data storage and printing
3).Supports connection with balance for flexible laboratory configuration
| Power supply |
AC(220±10%)V, 50Hz |
| Temperature range |
Room temperature ~300°C |
| Temperature setting resolution accuracy |
±0.1℃ |
| Temperature accuracy |
±0.5℃ |
| Heating unit |
Environmental light heating unit |
| Vacuum control |
Vacuum pump and pressure gauge air filters |
| Pressure range | 0~25mm H2O |
| Pressure resolution accuracy | ±0.05mm H2O |
| Pressure stabilization accuracy |
±0.2mm H2O |
| Heating power |
2kw |
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
