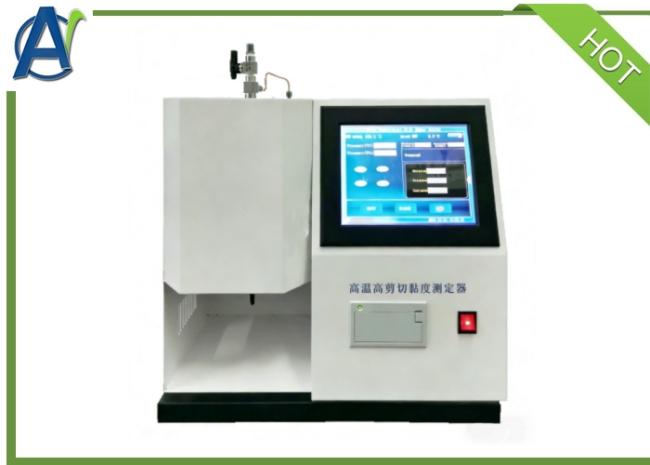

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS
General Introduction
This Apparent Viscosity Testing Equipment at High-Temperature and High-Shear complies with standards ASTM D5481 and SH/T0703. Under test conditions of 150℃, the sample is forced through a capillary viscometer by nitrogen (or carbon dioxide) pressure. The apparent viscosity of the sample at a wall shear rate of 1.4×106s-1is determined from the sample's efflux time and pressure. By using calibration curves for each viscometer cell, the oil viscosity corresponding to the measured pressure can be established..
| Power supply |
AC(220±10%)V, 50Hz |
| Heating Method |
Electric heating rod |
| Temperature control range(Experimental) |
150±0.1℃ |
| Pressure Control Range |
50kPa ~3500kPa |
| Sample Capacity |
8ml |
| The number of viscosity pools |
1unit(2 tubes need to be optional) |
| Capillary Viscometer inner diameter | 0.15mm |
| Capillary effective length | 16-18mm |
| Usage environment |
Ambient temperature (10~40) °C, |
| Display |
Touch screen display |
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
