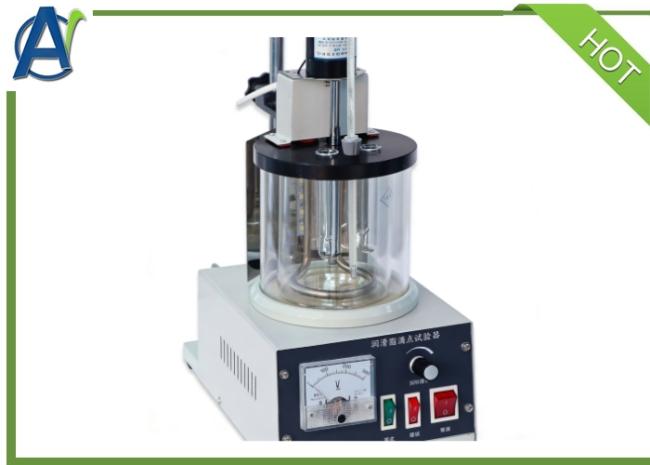

ASTM D566 Oil Bath Dropping Point Tester of Lubricating Grease
General Introduction
| Power supply | AC(220±10%)V, 50Hz |
| Total power consumption | 900W |
| Oil Bath | 600ml Beaker |
| Grease Cup | made of chrome plated brass, Inner diameter: 9.92mm, Oil dripping hole: 2.8mm, Cup height: 12mm |
| Test Tube | Heat resistant borosilicate glass tube with edge, Inner diameter: 11.1 mm to 12.7 mm, with three grooves to support the fat cup on the circumference 19mm from the bottom |
| Thermometer | Temperature range: (- 5~300) ℃; Division value: 1 ℃ |
| Stirring motor | 60R / min |
| Working environment | Temperature:(15~35)℃; Relative humidity:≤85% |
| Net Weight | 8KG |
| Dimension | 350mm×180mm×410mm |
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
