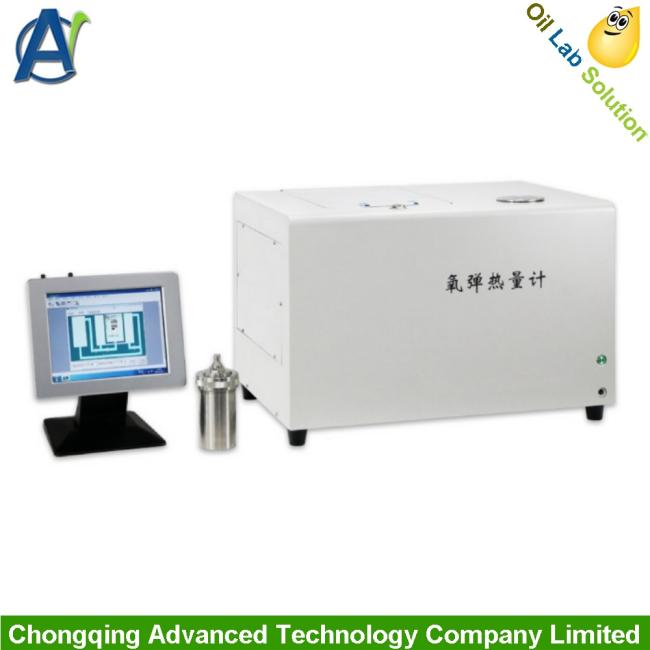

ASTM D240 Automatic Calorific Value Meter of Liquid Fuels by Oxygen Bomb Calorimeter
General Introduction
1. Adopting semiconductor refrigeration to decide the refrigerating capacity according to the calorific value,the instrument can automatically adjust water temperature and keep water in a relative constant temperature range,realize the continuously and long time test requirement,and make sure the test result is correct.
| Power supply | AC(220±10%)V, 50Hz |
| Total power consumption | ≤0.2KW |
| Measuring temperature range | 5℃~35℃ |
| Temperature resolution | 0.0001℃ |
| RSD(Relative standard deviation) | ≤0.1% |
| Test time | 12mins |
| Heat capacity | (9000~11000)J/K |
| Measuring range | 5MJ/kg~40MJ/kg |
| Measuring error | ±60J/g (Benzoic acid) |
| Accuracy | Better than GB/T213-2008 " The determination method of coal calorific value" |
| Pressure endurance of oxygen bomb | 20 MPa |
| Working environment | Temperature:(15~28)℃; Relative humidity:≤85% |
| Net Weight | 55KG |
| Outline Dimension | 650mm×450mm×450mm |
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
