IEC 60754-1&2 Halogen, PH & Conductivity Testing Device on Gases Evolved During Combustion of Materials From Cables

Price Negotiable

Price: $5000~$10000

MOQ: 1set

Delivery Time: 60days

Brand: Advanced Instruments

Product Description

General Introduction

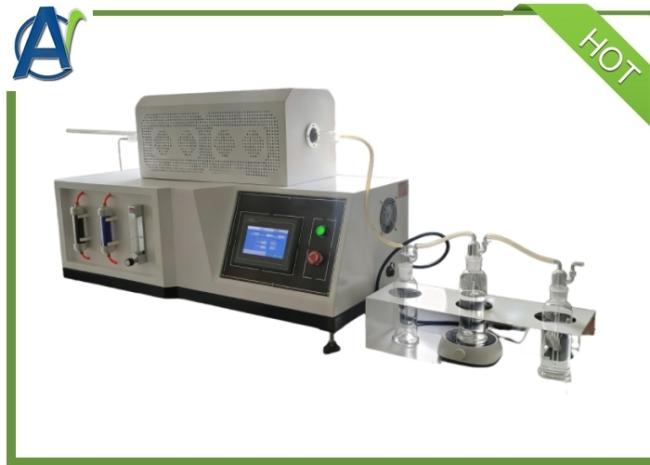

Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃).

Standards:

IEC 60754-1~2-1994

Technical parameters

Activated carbon (air filtering): filter for filtering the supplied air
Silica gel (air drying): a device for drying the supplied air
Flowmeter: 0.1~1L/min, a device to control the flow of the air source
Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0~1300℃
Quartz tube: φ40×800
Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water
PH meter: a device used for measuring the pH acidity (ray magnetic)
Conductivity meter: a device for measuring conductivity of combustion gas(ray magnetic)
7 "color touch screen and PLC and PID automatic calculation of the modulecontrol heating furnace temperature
Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW
Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1

Technical specifications

Dimensions: Main unit 1200mm(W)x520mm(D)x725mm(H)
Placement table 2500mm(W)x 600mm(D)
Power supply:AC220V, 50/60Hz, 21A
Reagents,glassware, gas source (provided by the customer)

FAQ

What's the delivery time?
About 60days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
