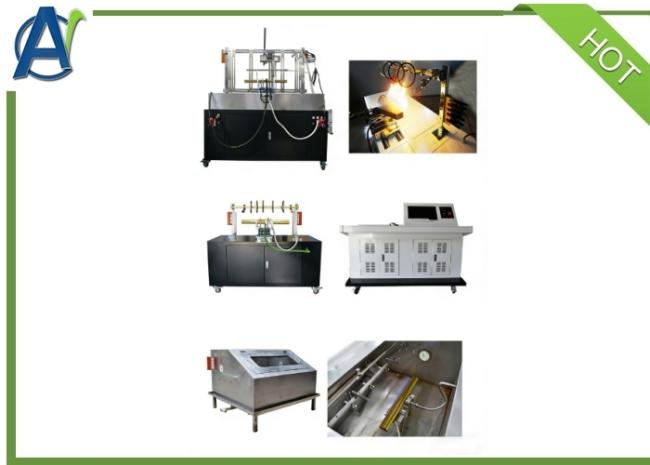

BS 6387 IEC 60331Cable Circuit Integrity Fire Resistance Tester Under Fire Conditions (Full Standard)
Full standard fire test machine comprehensive GB, lEC and BS standards. The structure and performance of the combustion testmachine contains fire characteristics test, water and fire resistance test and mechanical vibration and fire resistance test. This instrument adopts computer software to control and monitor the test process of the current, voltage, gas flow, the test results ofthe curve can be output to print. lt is suitable for mineral insulated cables with rated votage not exceeding 0.6~1Kv, and can keep the circuit intact for a long timeunder flame conditions. In the national standard fire-resistant based on the addition of the British fire-resistant cable standard BS6387"in the case of fire to keep the circuit intact cable performance requirements specification".
1.2 Related standards
- BS 6387-2013
- IEC 60331-(1,2,11,21,23,25):2018
- BS 8491-2008
- EN 50200-2006
1. BS Fire Resistance Test
1.1 Cable Support System
The cable is horizontally clamped onto one end of the cable sheaththrough a clamp. The middle part of the cable is fixed by two metal rings(spaced 300mm apart), which are grounded to the other metal parts ofthe device. For unarmoured cables with a diameter of less than 10 mmor for other cables that have shifted significantly during the test, threeadditional metal rings are required, each fixed at a distance ofapproximately 150 mm from the original ring.
1.2 Continuous Detection Device
During the test, the current is allowed to pass through all the cores of thecable, a three-phase star connected transformer with sufficient capacityto maintain the maximum allowable leakage current of 2A at the testvoltage. A load is connected to each core wire at the other end of thecable, and a current close to 0.25A is loaded at the rated voltage of thecable.
1.3 BS standard heat source: in line with AGF-1857B, nozzle length610mm burner
1.4 GB standard heat source: in line with AGF-1857B, nozzle length of500mm burners
1.5 Temperature measurement: 1.5 mm diameter armoured thermometerplaced near the air inlet, 75 mm above the burner, parallel to the burner.1.6 Test flame temperature: 950 + 40 °C
1.7 Specimen: The specimen is a section of the finished product, notless than 1200mm, with 100mm of sheath and covering removed at eachend. The wires at both ends of the cable shall be connected inaccordance with the electrical connection.
1.8 Test voltage: 100~1000V adjustable
1.8 Test Current: 100~260mA adjustable
2.Mechanical Vibration Resistance and Fire Resistance Test
The wall is composed of heat-resistant and flame-retardant materials,and is fixed on two horizontal steel beams, one at the upper part of theboard and the other at the bottom of the board. This board isapproximately 900mm long, 300mm wide, and 9mm thick, and the totalweight of the wall (i.e. board with supporting frame) is 10 + 0.5kg. Eachsteel beam is a square steel pipe with a length of approximately 1m and 25mm. lf filing material is required, it needs to be placed inside the steel beam. The upper steel beam must be fixed on the plate sothat its upper surface is flush with the upper edge of the plate. Each steel beam and plate has a horizontal hole at the outer edge,and its precise position is determined by the specific requirements of the support pad and suppor frame. The wallis bonded to theframe by four rubber bushings, with a diameter of approximately 32mm and a thickness of 20mm.2.2 GB Fire Resistant lmpact Bracket:
2.2.1EC60331-1
Specimen outside diameter of more than 20mm cable, impact test ladder frame consists of a steel frame, ladder frame on the two inthe centre of the vertical steel components can be adjusted to the left and right, the test ladder frame length of 1200 + 100mm, heightof 600 + 50mm, the total mass of the test ladder frame for 24 + 1kg (national standard for 18 + 1kg).
2.7 Test Current: 100~260mA adjustable
3.4 Water spray: a shower nozzle mounted on a test stand, in the middle of the burner, the pressure is 250kPa to 350kPa, spray0.25L/m' to 0.30L/m? water around the specimens. This rate measurement requires a collection tray, this tray should have a suficientdepth to make its long axis parallel to the axis of the cable and be center placed. This tray is approximately 100mm wide 400mmlong.
3.5 Specimen: Specimen is bigger than 1500mm from the finished products, and has been done bending test at ambienttemperature, remove sheaths and coating layers of 100mm at each end. The lead wires at the ends of the cable should be properlyhandled in accordance with electrical connections and suggestions of manufacturers3.6 Test voltage: 100 ~1000V adjustable
3.7 Test Current: 100~260mA adjustable
•Test chamber: (provided by the customer)
•Air source: propane, dry compressed air (provided by the customer)
- What's the delivery time?
About 90days. - What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping. - What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support. - Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
