IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

Price Negotiable

Price: $5000~$10000

MOQ: 1set

Delivery Time: 30days

Brand: Advanced Instruments

Product Description

General Introduction

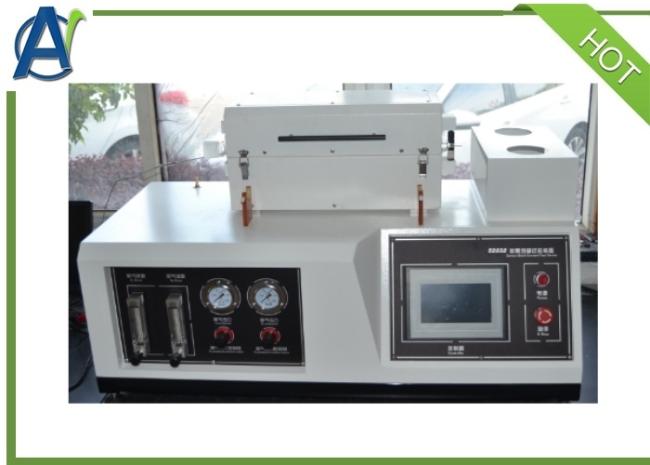

1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards

ISO 6964;
IEC 60811-4-1:2004
ASTM D1603

Technical parameters

Quartz tube: inner diameter 30mm, total length 600mm;
Heating furnace: room temperature~600℃, 500mm length;
Temperature sensor: K type, room temperature~1300℃;
Bottle washing: 500ml, 2 pcs/set;
Burning boat: Type 77, 100 pcs/set;
Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
Flow meter: 0.3~3L/min.

Technical specifications

Overall Dimensions: 600mm*450mm*770mm
Power supply: AC 220V, 50/60Hz, 16A

FAQ

What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
