ASTM D4049 Grease Water Spray Resistance Tester Lubricant Grease Water Spray Test Equipment

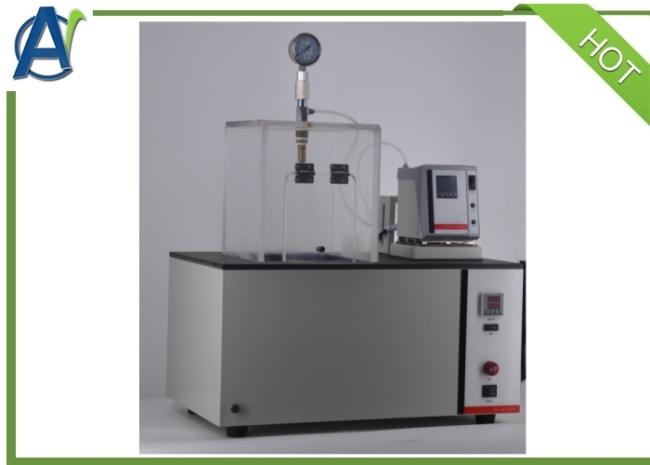

Grease Water Spray Resistance Tester
I. Introduction:
The operating principle of the Grease Water Spray Resistance Tester is: apply lubricating grease on a stainless steel plate and use water spray under the specified test temperature and pressure. After 5min, measure the spray weight loss percentage of the grease as a measure of the water spray resistance to the grease.
II. Main Features
- Plexiglass spray box for easy observation;
- Precision pressure gauge shows spray pressure;
- Stainless steel plate meets standard requirements: 152.4*50.75*6.35mm;
- Stainless steel mold meets standard requirements: 203.2*76.2*11.11mm;
- Stainless steel nozzle, nozzle diameter: Φ3.18mm;
- The front end of the pressure gauge has a bypass valve to adjust the pressure: 40psi±1psi;
- Microcomputer temperature controller, digital display, accuracy ±0.2ºC, PT100 sensor;
- The magnetic pump circulates the cooling medium, and the circulation pipe is equipped with an insulation sleeve;
- Digital display timer to control spray time.
III. Specifications:
|
Applicable standard
|
ASTM D4049,SH/T0643
|
|
Heating method of Water Spray Off Tester
|
electrical tube
|
|
Timing method
|
digital timer
|
|
Temperature control method
|
digital PID controller
|
|
Working temperature
|
38±0.2ºC
|
|
Working hydraulic pressure of Water Spray Off Tester
|
40psi±1psi
|
|
Hydraulic pressure control
|
adjusted by bypass valve
|
|
Spray method
|
precise nozzle
|
|
Total power
|
2.5KW
|
|
Power supply
|
AC220V/50Hz
|
|
Weight
|
43kg
|
