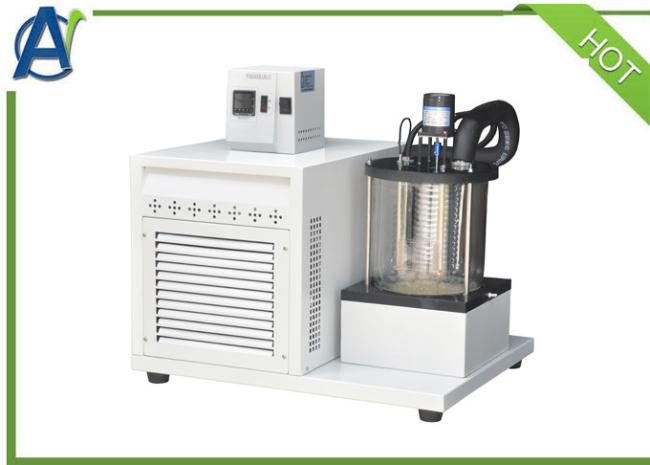

DIN 51351 Floc Point Test Instrument For Refrigerator Oils By Pressure Tube Method
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 days
Brand:
AI
Product Description
Summary
The test principle of the Floc Point Test Instrument is as follows: mix a certain amount of sample and refrigerant in the test tube, put them into the cold bath of the floc point tester after mutual dissolution, gradually cool them down at a certain speed, observe under the light, and record the temperature at this time when the milky or flocculation phenomenon begins to appear.
The Floc Point Test Instrument is applicable to mineral oil refrigerator oil and synthetic oil refrigerator oil.
I. Main technical features
1. Double compressor cascade refrigeration ensures the supply of cooling capacity;
2. Microcomputer temperature controller. Digital display, accuracy ± 0.2 ºC PT100 sensor;
3. Glass Dewar bottle for cold bath, good heat preservation effect;
4. Split structure to reduce the damage caused by instrument vibration;
5. The Floc Point Test Instrument provides Stainless steel heater;
6. Evaporator adopts copper chrome plated coil;
7. The back of the Dewar bottle is provided with sunlight for easy observation;
8. Stainless steel clamping system can quickly clamp the test tube;
9. The Floc Point Test Instrument is supplied with special glass test tube, meeting the standard requirements.
The test principle of the Floc Point Test Instrument is as follows: mix a certain amount of sample and refrigerant in the test tube, put them into the cold bath of the floc point tester after mutual dissolution, gradually cool them down at a certain speed, observe under the light, and record the temperature at this time when the milky or flocculation phenomenon begins to appear.
The Floc Point Test Instrument is applicable to mineral oil refrigerator oil and synthetic oil refrigerator oil.
I. Main technical features
1. Double compressor cascade refrigeration ensures the supply of cooling capacity;
2. Microcomputer temperature controller. Digital display, accuracy ± 0.2 ºC PT100 sensor;
3. Glass Dewar bottle for cold bath, good heat preservation effect;
4. Split structure to reduce the damage caused by instrument vibration;
5. The Floc Point Test Instrument provides Stainless steel heater;
6. Evaporator adopts copper chrome plated coil;
7. The back of the Dewar bottle is provided with sunlight for easy observation;
8. Stainless steel clamping system can quickly clamp the test tube;
9. The Floc Point Test Instrument is supplied with special glass test tube, meeting the standard requirements.
II. Main technical specifications
| 1 | Power supply | AC(220±10%)V, 50Hz |
| 2 | Applicable standard | DIN 51351,GB/T12577 |
| 3 | Cooling method | Double compressor |
| 4 | Temperature range | RT~60ºC |
| 5 | Temperature controlling | digital PID temperature controller |
| 6 | Total power | 1KW |
| 7 | Working position | 2 units |
