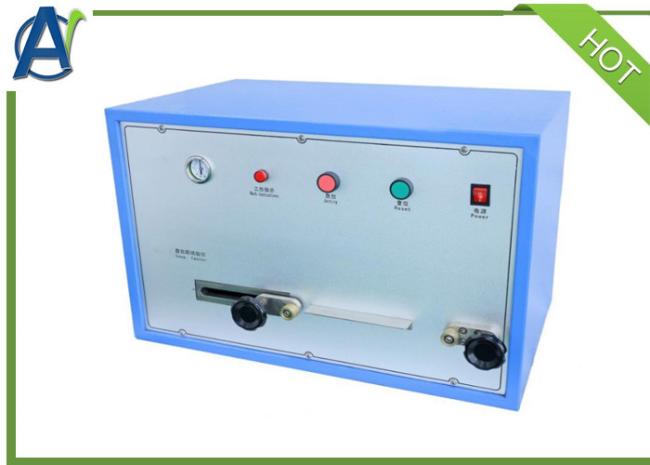

Intelligent Elongation Test Equipment according to IEC60851-3 for Copper Wires
Price:
Negotiable
MOQ:
1 Set Elongation Test Equipment
Delivery Time:
15 days
Brand:
AI
Product Description
Performance Characteristics
- Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008
- This Elongation Test Equipment is used to test elongation (ductility) of copper wires covered with φ0.018-φ3.000mm enamel, silk or other insulation materials and other metal wires with tensile strength ≤2000N;
- This Elongation Test Equipment adopts SCM control for fast operation and strong anti-interference capacity;
- Clamps are designed according to characteristics of various wires to prevent samples from breaking at clamp jaws, easy to load samples and, after samples are compressed, enamel can be automatically broken;
- While sample is broken, movable clamp would automatically stop moving, with error between displayed and actual elongation value less than 1%;
Major Technical Parameters
| Start distance between two clamps | 200±0.5mm |
| Stretching speed of sample | 300±60mm/min |
| Maximum elongation testing range ( displacement distance of movable clamp) | ≥80% (≥160mm) |
| Display of elongation | LED display, display accuracy of 0.1% |
| Input power | AC220V±10% 50Hz |
| Power consumption | ≤200W |
| Overall dimensions | L×W×H 640×420×410mm |
| Weight | 45kg |

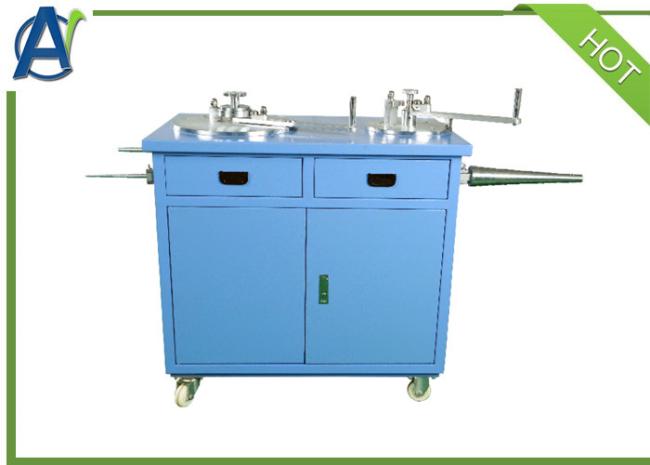

Similar Products
