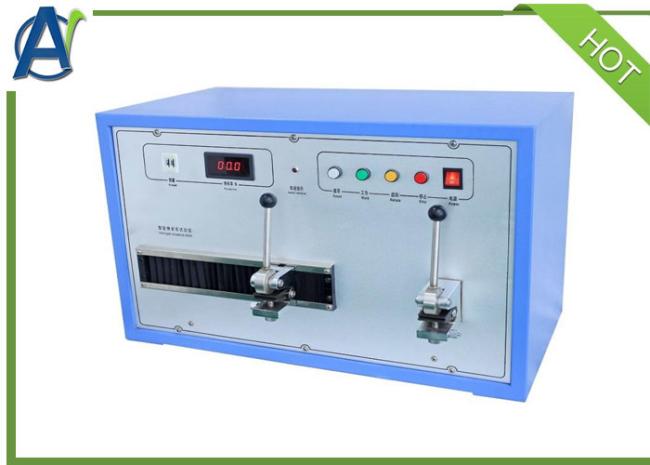

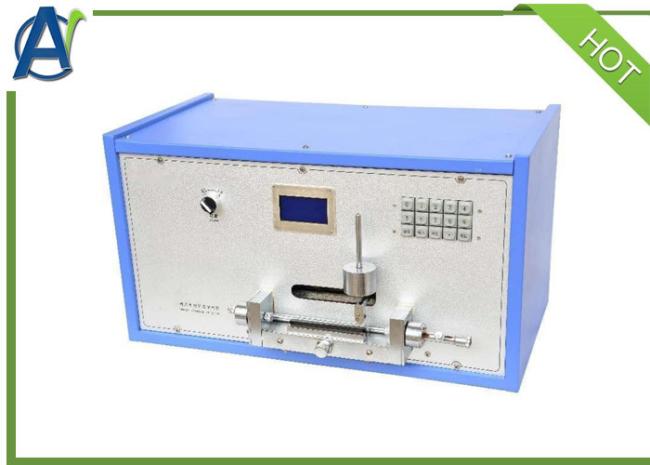

IEC60851-3 Scrape Resistance To Abrasion Test Instrument For Copper Wires

Performance Characteristics
1.Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008
2.This Resistance to Abrasion Test Instrument is used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm;
3.Application of SCM control allows for fast operation and strong anti-interference capacity;
4.This Resistance to Abrasion Test Instrument can automatically complete the whole test process and work out the average of scraping forces obtained in three times;
5.Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample;
6.As driven by precision linear rail, scraper is free from shake during movement;
7.When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample<3mm;
8.Chinese/English LCD displays test operating procedure and test results;

Major Technical Parameters
