Blue Color Purlin Roll Forming Machine Yield Strength 235Mpa With 14 Steps Rollers
Blue Color Purlin Roll Forming Machine Yield Strength 235Mpa With 14 Steps Rollers
1. Usage And Introduction Of This Production Line
Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.
Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
2. The roll forming machine parameters
| Item Name | Specification |
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.0mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 8-12 m/min or as your customized |
| Under frame | 350 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| Weight of the machine | 3.5 ton -6 ton |
3. The PLC control system of the production line
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English or Russian language .

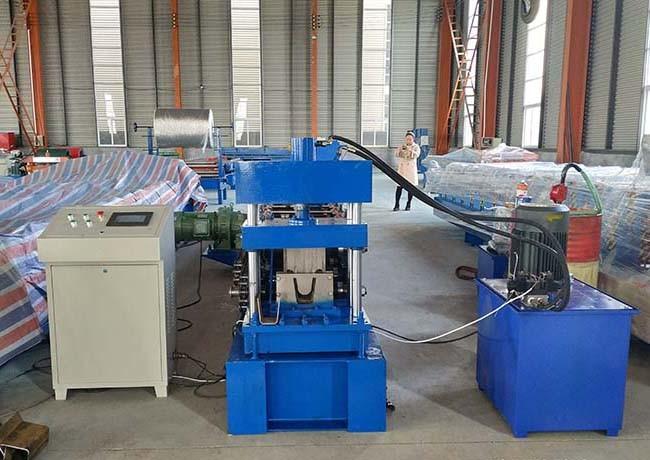

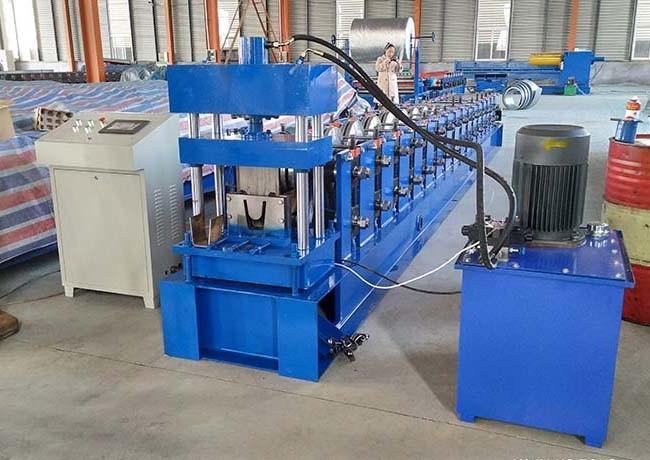

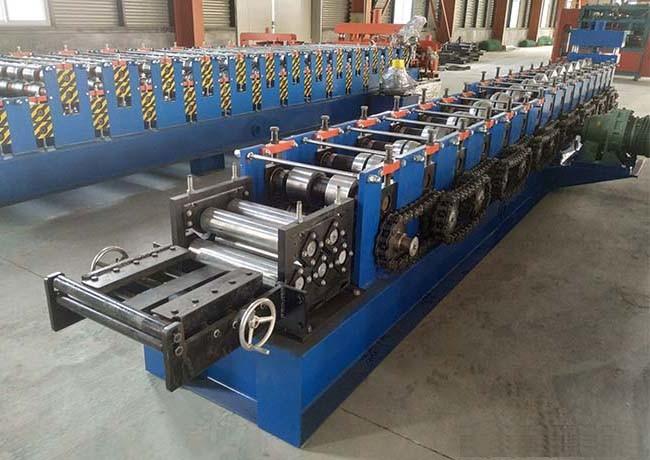

4. Roll forming machine pictures:
