Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction
Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction
CZ purlin roll forming machine has now become an indispensable equipment for construction of I-beam and channel steel in tunnels, subway, hydropower stations, underground caverns, etc
features:
1. Upgraded version of CZ integrator, fast transformation; 1-2 minutes transformation
2. specifications and CZ
3. Realization of Automatic Conversion of CZ Specification
4. Realize CZ automatic flip 180 degrees
| Bottom Width | C:100-350 | |
| Purlin Height | C:50-100 | |
| Suitable Material | Type | Galvanized Steel Strip,Hot Rolled Coil(Black Steel Strip) |
| Yeild Strength | 230-300Mpa | |
| Thickness | 2.0-3.5mm | |
| Feeding Width | C:200-590mm | |
| Punching /Cutting Motor | 45 KW Hydra System | |
| Transmission Motor | ||
| Size shaft diameter | 90/75mm | |
| Wall Panel Thickness | 35mm | |
| Base Specification | H500*199 | |
| Purlin Spec. Changing Mode | Computer Control | |
| Forming Speed | 0-30m /min | |
| Forming Station | 20 Stations | |
| Blade Material | Cr12(Die Steel) | |
| Roller Material | Cr12(Die Steel) | |
| Mode of Speed Regulation | AC Inverter Speed Regulation | |
| Driving Mode | Reduction Motor + Chain Transmission | |
| Cutting Mode | Hydraulic Type,Pre-cutting | |
| Punching Mode | Hydraulic Type,Pre-punching(Dual hole+Single hole 14*25) | |
| Measuring Mode | Photoelectric Encoder | |
| Control Mode | PLC | |
| Operation Mode | Button+Touch Screen | |
| Voltage | 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph | |
Machine Parts

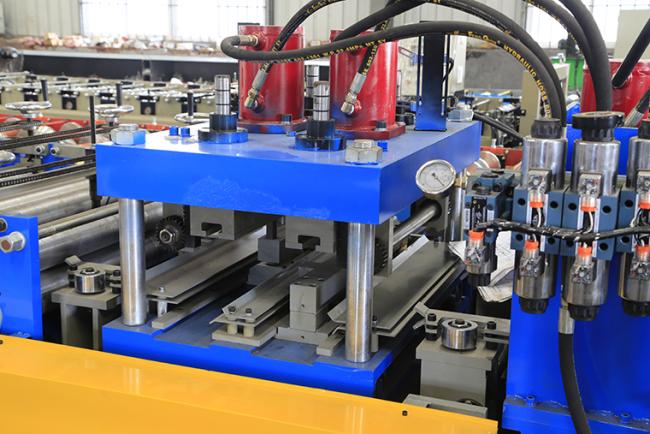

1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) CZ purlin machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

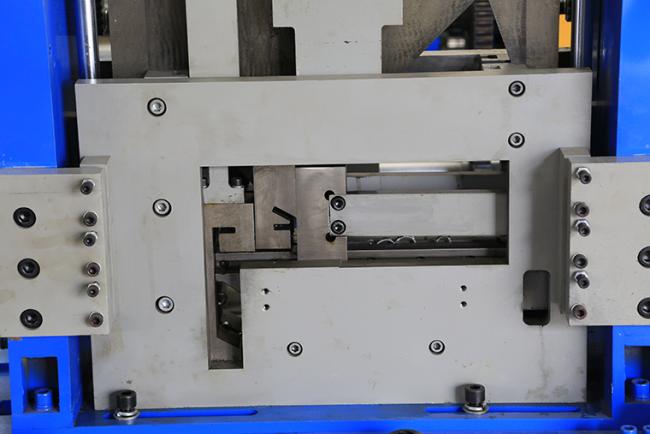

3) CZ purlin machine post cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
