Cr12 Cutter Standing Seam Roll Forming Machine Dimension 8600 * 1300 * 1450mm
Cr12 Cutter Standing Seam Roll Forming Machine Dimension 8600 * 1300 * 1450mm
Warranty: 24 months
Type: Tile Forming Machine
Production Capacity: 8-12m/min
Certification: CE,ISO,BV
Applicable Industries: Building Material Shops, Manufacturing Plant
Condition: New
Tile Type: Colored Glaze Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Brand Name: self lock
Voltage: 380V,50HZ,3 phrases
Dimension(L*W*H): 8600mm*1300mm*1450mm
Weight: 5.2T
After-sales Service Provided: Engineers available to service machinery overseas
type: Standing Seam Roll Forming Machine
COLOR: BLUE OR AS THE CUSTOMER'S NEED
USE: ROOF AND WALL
roller material: 45#steel with chorm on the surface
Feeding Thickness of plate: 0.3-0.9mm
Main Frame: 350mm H-Beam
CONTROL SYSEM: PLC AUTOMATIC CONTROL
Cutter material: Cr12 , quenched
Main parameters:
| No. | main parameter of galvanized steel joint hidden roll forming machine | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 820/470/760 mm |
| 3 | Roller station | 16 rows or custom |
| 4 | Thickness of feeding material | 0.3-0.6mm |
| 5 | Power | 5.5kw |
| 7 | Productivity | 6-12m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 6 T |
| 10 | Size | 8200*950*1000mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Carbon Steel 45# |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 14mm steel plate |
| 15 | Main forming machine body | 400 mm H steel |
| 16 | Control system | PLC control |
| Can be customized according to customer requirements or drawings | ||
Feature:
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you can set several different data on thecomputer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install.
Application:
- The roof panel used as the roofing of factory, garage,warehouse, reliable and safety installation is easy to realize.
- Good toughness: with super toughness, There is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.
- Long life: life ≥ 25 years, is an alternative to steel tile.
- Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.
- Noise performance: noise performance is good, away from the noise.

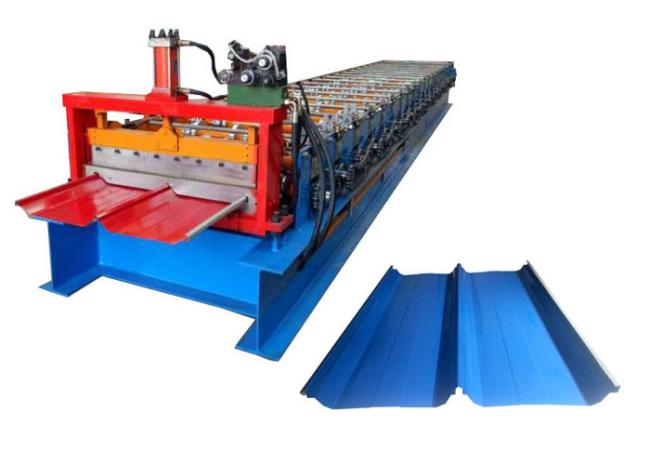

Machine pictures
