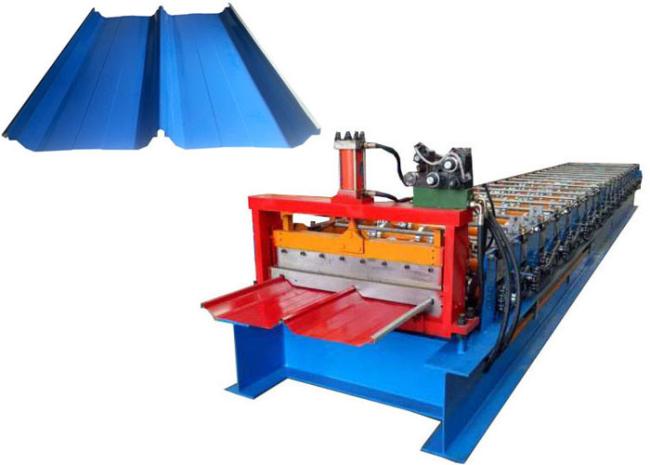

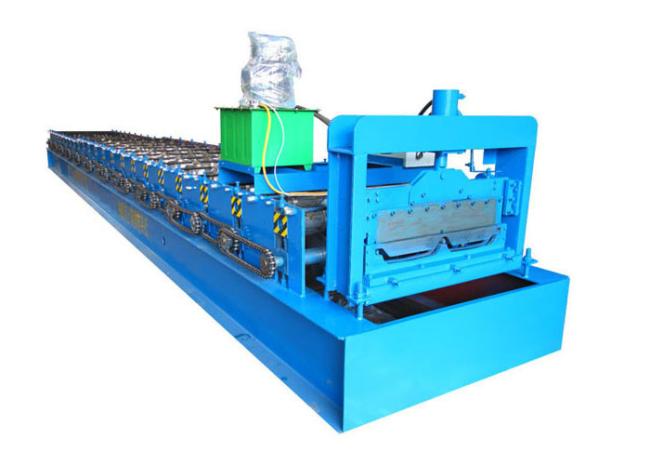

Aluminum Profile Standing Seam Roll Forming Machine Joint Hidden Type Chain Size 27mm
Aluminum Profile Standing Seam Roll Forming Machine Joint Hidden Type Chain Size 27mm
Instruction of the roll forming machine production line
Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
this machine is popular in Middle East and was exported to many countries.
Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.
The components that each set machine includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 1 unit |
| Auto stacker | 1 unit |
The roll forming machine parameters
| Name | joint-hidden aluminum profile standing seam metal roof machine |
| Dimension | About 13000*1600*1200mm |
| Total weight | 13 tons |
| Forming steps | 20 steps up to final design |
| Forming speed | 10-20 m/min |
| Hydraulic station power | 11 kw |
| Chain Size | 27mm |
| Decoiler capacity | 3.5 tons |
| Control system | PLC |
| Raw material thickness | 0.3-0.8mm |
| Usage | Roofing panel |
Our after sales service
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
