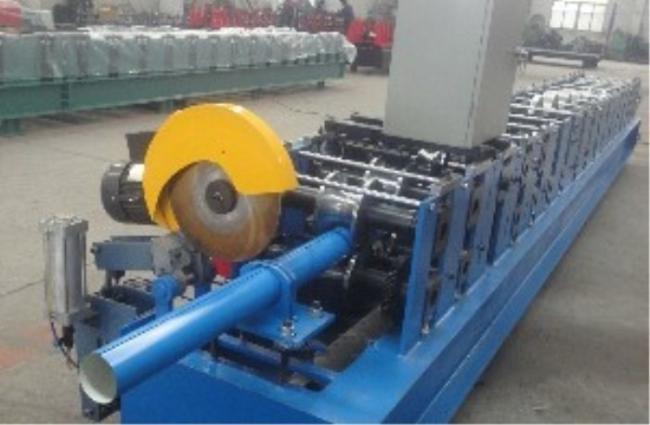

PLC Control Downspout Roll Forming Machine 4kw Motor Power With Cycloidal Reducer
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40days
Brand:
OEM
Product Description
PLC Control Downspout Roll Forming Machine 4kw Motor Power With Cycloidal Reducer
Parameter:
| No. | square /round tube roll forming machine | |
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 333mm or customized |
| 6 | Thickness of material | 0.4-0.6mm, customized |
| 2 | Working speed | 8-10m/min, can be 20m/min |
| 3 | Main motor power | 4kw with cycloidal reducer |
| 4 | Hydraulic station power | 4kw |
| 5 | Electrical control system | PLC control system |
| 7 | Shaft diameter | 65mm |
| 8 | Roller station | 17 rows |
| 10 | Dimension | 7800x1150x1510mm |
| 11 | Weight | About 3.6T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 only |
Note:Above parameters are standard,we can design and make some change according to your requirement.
Specifications
Material-fed supporting frame
Automatic shearing mechanism
Hydraulic system
Computer control cabinet with imported PLC
Technical process:
Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table
Equipment Parts
Decoiler, roll forming machine, hydraulic cutting device, electric system(PLC control system), hydraulic system, stacker.
