16 Rollers Downspout Roll Forming Machine / Downpipe Roll Forming Machine Speed 10-15m/Min
16 Rollers Downspout Roll Forming Machine / Downpipe Roll Forming Machine Speed 10-15m/Min
Technical Parameter
| Gutter roll forming machine | |||
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | |
| Thickness(mm):0.3-0.8 | |||
| Yield strength: 250 - 550MPa | |||
| Tensil stress( Mpa):G350Mpa-G550Mpa | |||
| 2 | Nominal forming speed(m/min) | 8-10 | Or according to your requirement |
| 3 | Forming station | 16 | According to your profile |
| 4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
| 5 | Main machine motor | China famous brand | Siemens |
| 6 | PLC brand | Delta | Siemens/Panasonic |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ materail | Steel #45 | GCr15 |
| 10 | Station structure | Wall plate |
Forged Iron station
Or Wall panel structure
|
| 11 | Cutting system | Post-cutting | Pre-cutting |
| 12 | Power supply requirement | 380V 50Hz | Or according to your requirement |
| 13 | Machine color | Blue | Or according to your requirements |
Gutter Machine Description
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.
In rainwater goods system, we are able to manufacture more machines like round downspout pipe roll forming machine, square downspout pipe roll forming machine, separate elbow machine etc.
Gutter roll forming machine is suitable for companies who work on rainwater goods system. Machineable thickness of gutter could be 0.4mm-0.6mm or as you request with raw material:Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We could make machine solution for Quad Gutter, Quarter Round Gutter, C-Square Gutter, Hi-Square Gutter, Lo-Square Gutter, VC Gutter, VF Gutter, VFC Gutter, VFM Gutter, VT Gutter, OG Gutter, OG Big One Gutter, S Gutter, Half Round Gutter, Smoothline Gutter, Round Flo Gutter or according to your profile drawing.
Flow Chart
Uncoiling – Feeding with guide– Roll forming – Hydraulic cutting – Run-out table

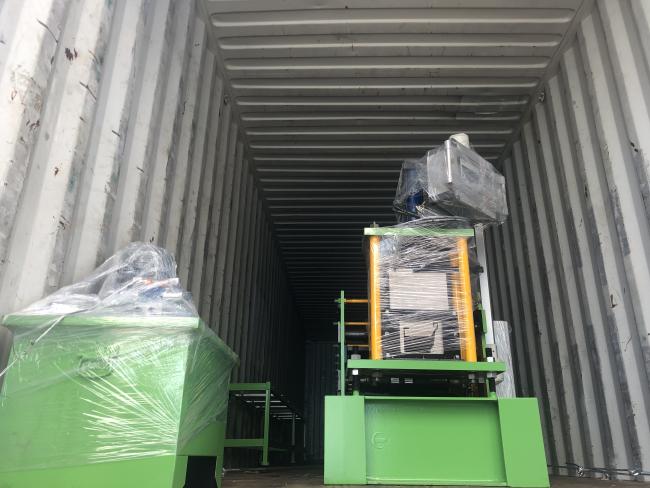

Gutter Machine Photo
