18 Rows Gutter Roll Forming Machine Dimension 5000 * 800 * 1200Mm Pressure 10-12MPa
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40days
Brand:
OEM
Product Description

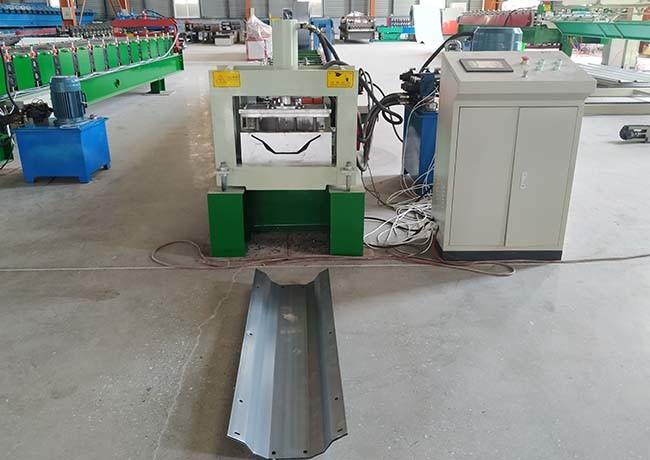

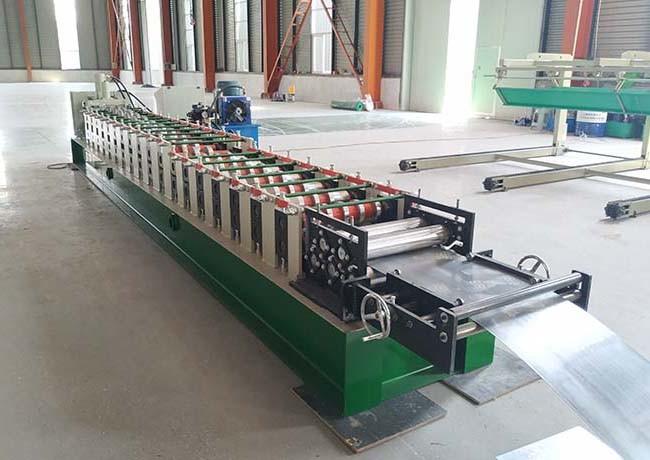

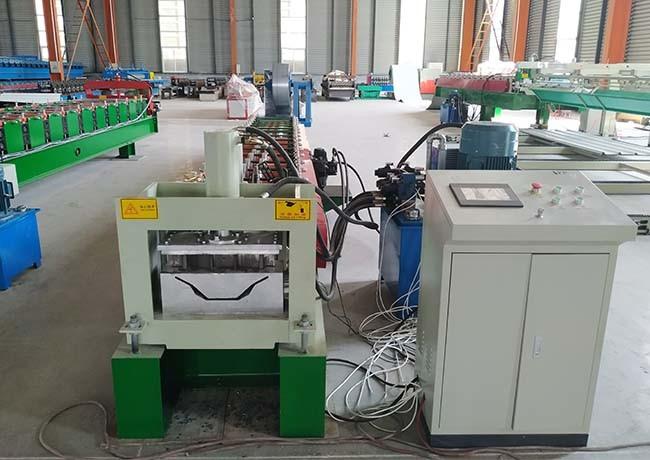

18 Rows Gutter Roll Forming Machine Dimension 5000 * 800 * 1200Mm Pressure 10-12MPa
Product Application
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
Working Flow:
Decoiler-------Feeding-------Roll forming-------Cutting------Finished product
Technical parameters:
|
Raw material |
|
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| Input width | 300mm |
| thickness of coil sheet | 0.5-0.7mm |
|
Machine details |
|
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 80mm or as your requirement |
| main frame | 300 H steel |
| forming steps | 18 rows |
| productivity | 20-25 m/min |
| hydraulic station power | 22KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
Our Service:
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
- Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
