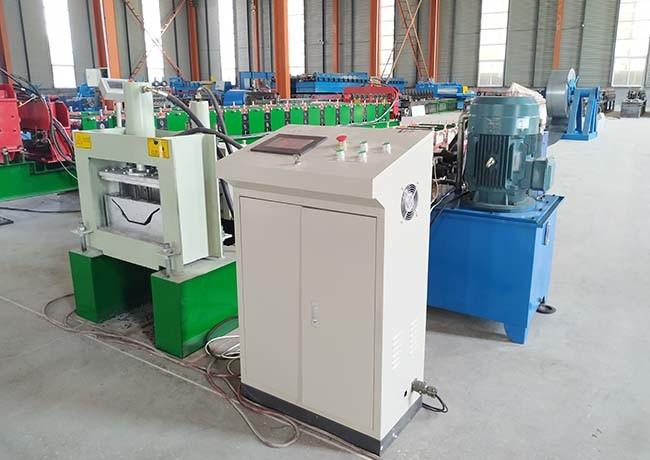

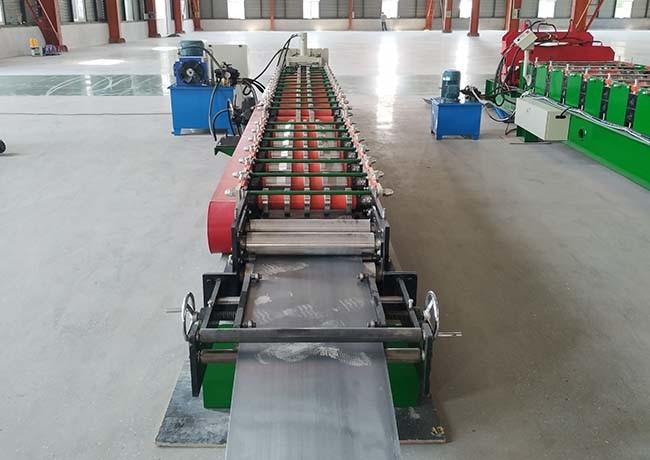

Waterproof Gutter Roll Forming Machine / Gutter Making Machine With Punch Hole Device
Waterproof Gutter Roll Forming Machine / Gutter Making Machine With Punch Hole Device
---- This machine produced gutter for roofing water proof.
---- The gutter profile not only one design, we accept all kinds of design, the machine rollers will make according to different profile.
---- Our good reputation from our old customer can help us get more orders.
---- Our service start at machine designs, till to machine installation finish, customer do not have any worry about the machine.
parameters
| Raw material | |
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.2-0.8 mm |
| Material expand width | 1000 mm |
| Efficiency width | 750 mm |
| Machine details | |
| Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 15 stations |
| Productivity | 8-12 m/min |
| Hydraulic station power | 4+4KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7600mm*1500mm*1500mm |
| Weight | 8-10tons |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
FAQ
A: - What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter,price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B: - Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C: - Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
