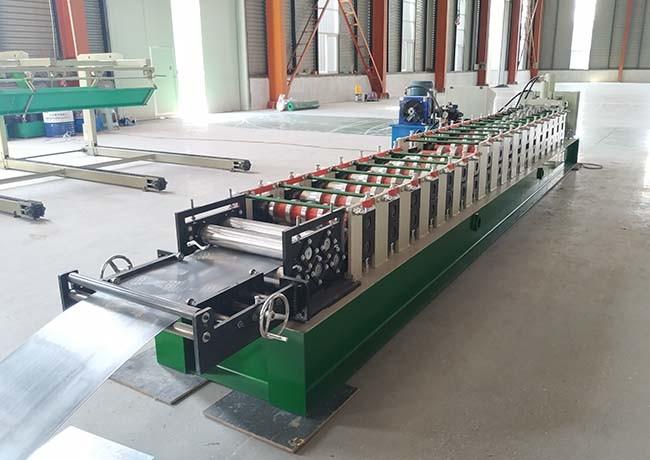

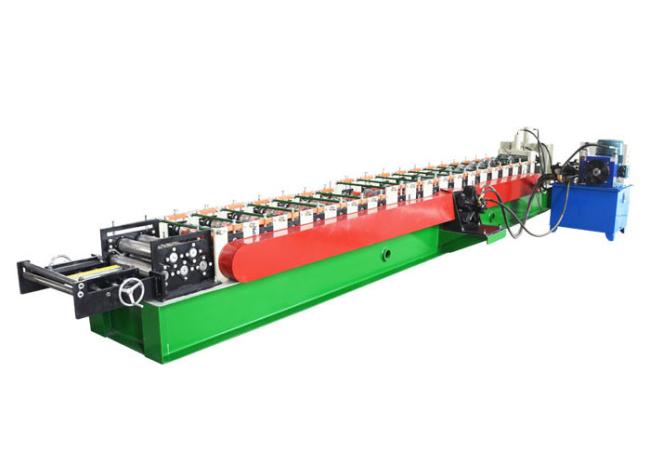

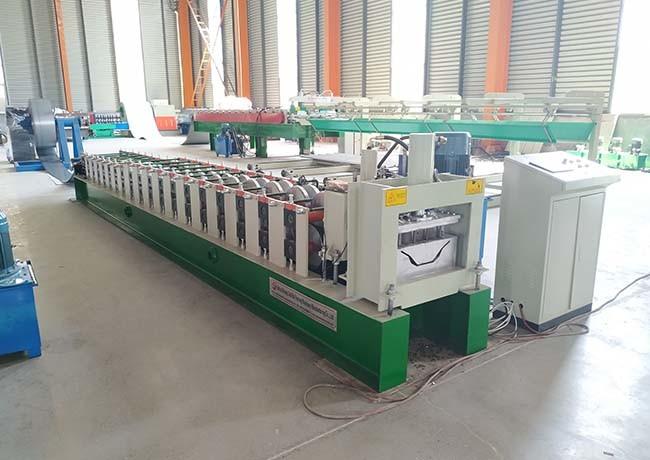

Color Steel Plate Downspout Roll Forming Machine Main Structure 300 H Steel
Color Steel Plate Downspout Roll Forming Machine Main Structure 300 H Steel
Usage And Introduction Of This Production Line
This machine is popular in Middle East and was exported to many countries.
Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.
We can also supply the customized machines.
Applications of the Roll Forming Line:
The finished products are widely used in roofing construction, after installed the gutter, it will increase the lifetime of the roofing.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
parameters
| Suitable steel plate | Type | Color steel plate |
| thickness | 0.5-1.2mm | |
| Feeding width | 200-600mm | |
|
Processing precision |
Within 1.00mm | |
| Production speed | 8-12m/min | |
| Roller stand | 12rows | |
| Voltage | 52mm | |
| Main power | 4kw | |
| Pump power | 3kw | |
| Side panel of machine | 14mm | |
| Roller material | Carbon Steel 45# | |
| Blade material | Cr12 | |
| Control system | PLC control | |
| Main structure of the machine | 300 H steel | |
After sales service of the roll forming machine production line
1>. Free technical support and free accessories supply.
2>. Engineer available to service machinery overseas.
3>. One year warranty is provided.
4>. Long life technical guidance for free.
5>. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
