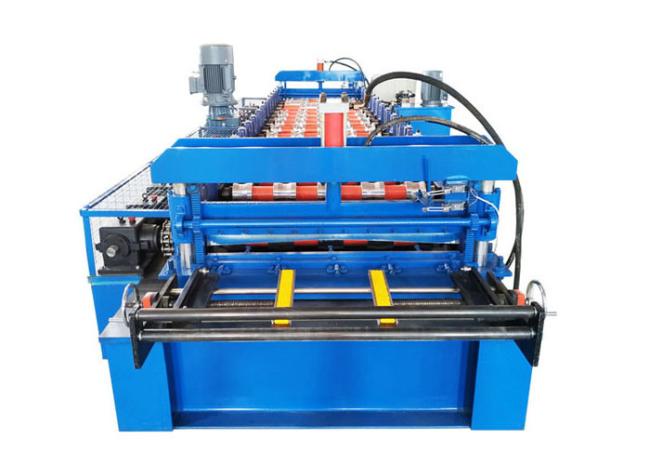

Blue Color Trapezoidal Sheet Roll Forming Machine Hydraulic Cutting Type
Blue Color Trapezoidal Sheet Roll Forming Machine Hydraulic Cutting Type
1. Know about our machine
This machine is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on. It has many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers, etc.
2. Specifications
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | 1000mm | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1000mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| IBR Roof Panel Roll FormingMachine | Forming Stations | 15 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 75mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Gearbox transmission | |
| Forming speed | 30-35m/min | |
| Main power | 11KW |
| Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 5.5KW | |
| CuttingTolerance | 1mm | |
| Encoder | OMRON Brand | |
| Electrical Control System | PLC | PANASONIC Brand |
| Inverter | SIEMENS Brand | |
| Touch screen | SIEMENS Brand | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
3. The features of the machine
1), this equipment using high level automatic control software, the realization of information management.
2), the automation control system USES high integration of network, the automation system performance is superior.
3), This machine also has the operation, maintenance, maintenance and debugging machinery, mold the advantages of easy replacement.
4), pressure plate, solemn elegant, beautiful novel, and smooth appearance, uniform corrugated, utilization rate is high, strength, producing a high degree of automation, low cost, durable.
