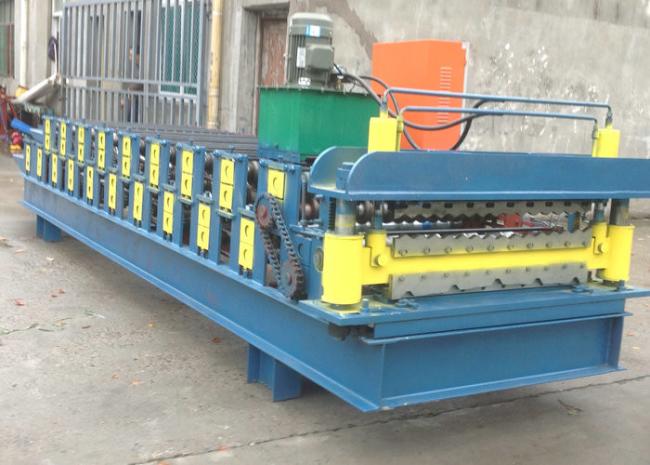

Corrugated / IBR Roll Forming Machine , Double Layer Roll Forming Machine 13-22 Stations

Corrugated / IBR Roll Forming Machine , Double Layer Roll Forming Machine 13-22 Stations

Machine components


De-coiler------------------------------------------2sets

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

Decoiler

(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

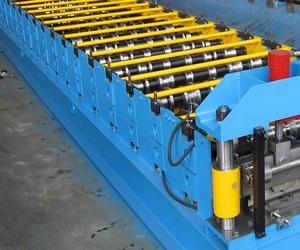

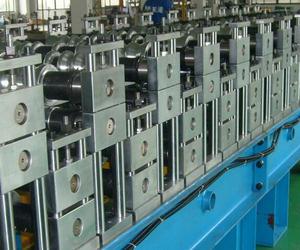

roll forming


Item	Parameter detail
Processing Material	GI and PPGI
Material thickness	0.25-0.8mm
Machine frame	360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel	plate type Pillar type(option) Plate thickness:20mm Pillar thickness:30mm Painting:normal painting painting:Chroming
Forming stations	13-22 stations(according to the profiles)
Machine rollers	high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft	φ70-80mm high garde No.45 steel after treatment,
Machine spacers	CNC lathing in high-precision
Machine bearings	China Haerbin bearing or SKF international bearing(option)
Driving system	1 inch chain or gear box(option)
Machine power	3kw-11kw(according to the profiles)
Machine working speed	8-12m/min or 10-30m/min(option)
Machine adjust type	After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

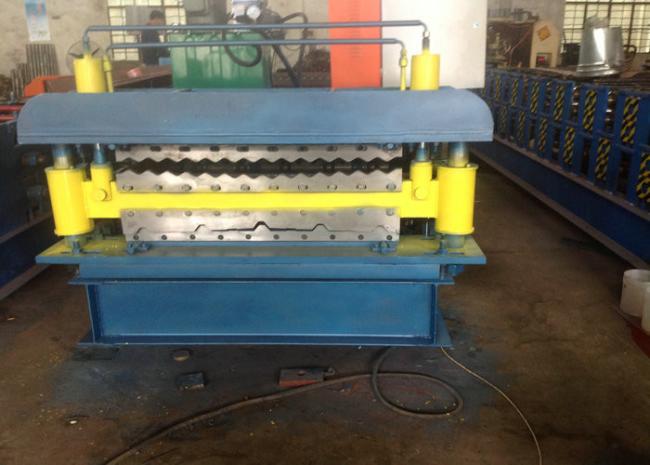

Cutting

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

PLC

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese
