Two Waves Crash Barrier Roll Forming Machine Blue Color With Hydraulic Decoiler
Two Waves Crash Barrier Roll Forming Machine Blue Color With Hydraulic Decoiler
Speedway Guard Rail Roll Forming Machine is used to produce guard rails or crash barriers. We have experience of exporting our guardrail roll formers to Russia, Saudi Arabia, Turkey, Indonesia etc.You could see our producing line in new factory, if you visit us.We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.
Highway Guardrail Roll Forming Machine can make W beam guardrail, thrie beam guardrail, also can be designed as two waves or three waves profiles in one machine just need to add some stations at the end of the machine.
Components for the Machine:
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | Thickness(mm): 2.0-4.0 |
| Yield strength: 250 - 550MPa | Tensil stress( Mpa):G350Mpa-G550Mpa | ||
| 2 | Nominal forming speed(m/min) | 15 | Or according to your requirement |
| 3 | Forming station | 15-20 | According to your profile |
| 4 | Decoiler | Hydraulic decoiler | |
| 5 | Main machine motor | Sino-German Brand | Siemens |
| 6 | PLC brand | Panasonic | Siemens |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Gearbox drive | Chain drive |
| 9 | Rollers’ materail | Cr12 | GCr15 or #45 Steel |
| 10 | Station structure | Forged Iron station |
Wall panel station
Or torri stand structure
|
| 11 | Punching system | No | Hydraulic punching station or Punching press |
| 12 | Cutting system | Post-cutting | Pre-cutting |
| 13 | Power supply requirement | 380V 60Hz | Or as custmized |
| 14 | Machine color | Industrial blue | Or as customized |
Drawing of Highway Guardrail Metal Automatic Roll Forming Machine

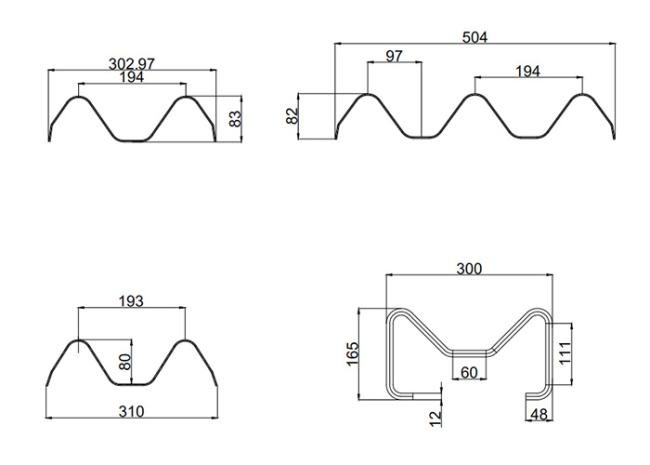

Special for Sri Lanka Client :two wave guardrail drawing

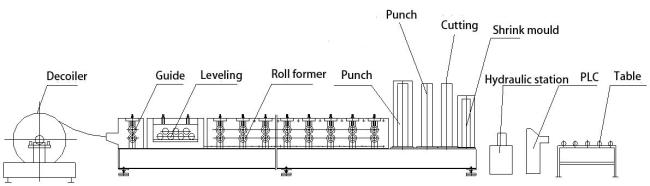

Production line:Hydraulic decoiler-Guide-Leveling-Roll forming machine-Hydraulic punch-Hydralic cut-Shrink mould-Out table
Operation and Maintenance of High quality two / three / waves high road way guard rail roll forming machine
1 . If you need to adjust the machine, please firstly stop the machine before carrying out relevant operations.
2 . Chain wheel, bearing and speed reducer of two / three / waves high road way guard rail roll forming machine should be lubricated regularly.
3 . The forming roller should be kept clean.
4 . With high performance in operation, two / three / waves high road way guard rail roll forming machine generates little noise.
Our service
1 . Free technical support and free accessories supply.
2 . Engineer available to service machinery overseas.
3 . One year warranty is provided.
4 . Long life technical guidance for free.
5 . We always offer technical support, quick response, all your inquire will be replied in 24 hours.

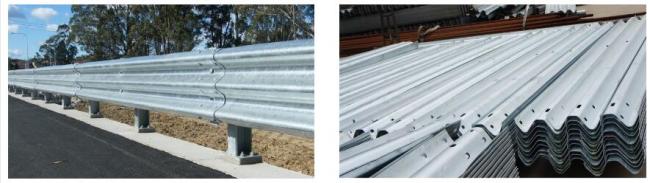

Application
