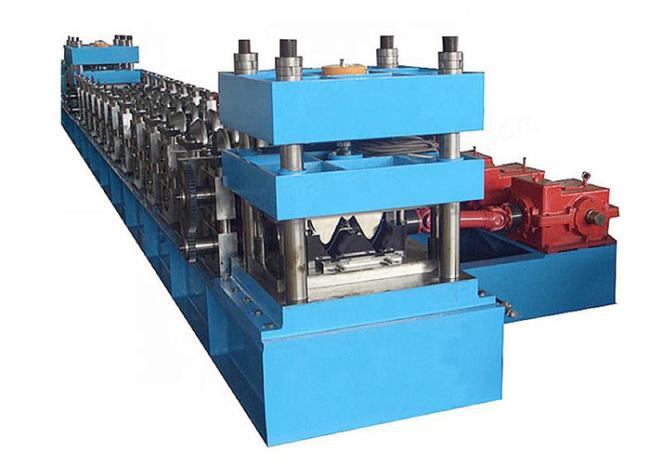

Steel / Metal Cold Roll Forming Machine , Highway Guardrail Making Machine Guide Pillar Type
Steel / Metal Cold Roll Forming Machine , Highway Guardrail Making Machine Guide Pillar Type
Our machine can manufacture many kinds of highway guardrails, the panels which producted by the machine have a high quality, and the finished floor decks are used for constructing buildings, protect buildings against shaking. It's convinient to operate and has a good design, advanced technology and resonable price. We can customize special type,the quality of machine can be guaranteed.
Main parameters:
The thickness of the sheet: 2-3 mm
main shaft dia: DIA 100mm material: number 45 forge steel
roller material: GCr15 quenched 58°-62°,chromed
roll station:13 stations, guide pillar type.
Timing by transducer:5--20m/min(not including punching)
drive: gearbox driving with shafts
Transducer: Yaskawa made in Japan. 380V 50HZ
Cutting: hydraulic cut
knife material: Cr12,quenched 58°-62°
oil cylinder dia: 150mm
working pressure: 30mpa
working journey: 80mm
Main features:
1. This production line can be automatically run by inputting some data (like products length and batches) to the PLC control system.
2. Very strong base frame is configured to avoid vibration.
3. All the rollers have been processed by CNC lathe and polished on the surface to guarantee the accuracy.
4. The rollers have gone through hardened treatment to guarantee long lifespan.
5. We can also design the crash barrier roll forming machine according to customer’s requirement.

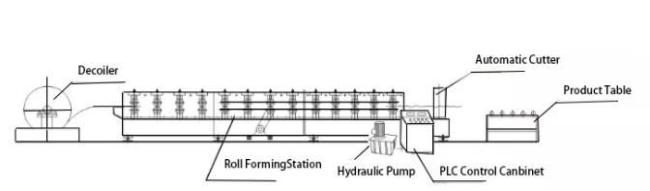

Recoiling---Feeding (take the sheet to the first station)---leveling---Punching of the sheet---roll forming---Hydraulic cutting---Products collecting manual
Machine components:
| Name | Quantity |
| Roll forming main machine | 1 unit |
| 5T hydraulic decoiler | 1 unit |
| Control carbinet | 1 unit |
| Hydraulic station | 2 units |
| Manual out table | 2 units |
| Spare tools | 1 box |
This machine is mainly made up of loading coil car, exit looping kit, roll former with tooling, automatic stacking device, flying cut-off machine, servo roll feeder, leveler, loading coil car, etc.

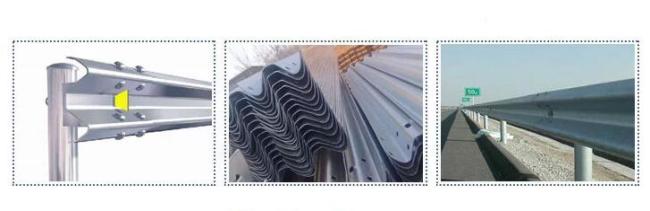

The finished products are widely used on highway, expressway and other public places to prevent different kinds of accidents and improve safety. They can also be used as fence for livestock farms and other places.
