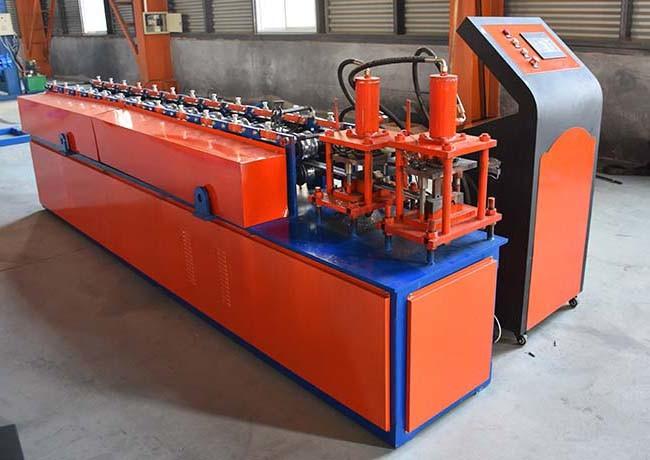

High Precision Drywall Stud Roll Forming Machine / Metal Stud Roll Forming Machine Stable
High Precision Drywall Stud Roll Forming Machine / Metal Stud Roll Forming Machine Stable
Usage And Introduction
- Strong Power Light Keel Steel Roll Forming Machine used for produce furring channel and drywall profile. We can manufacture sizes as customers request.
- Strong Power Light Keel Steel Roll Forming Machine used casting frame,this is kind of casting frame never cutting and welding,so this frame very strong and high precision.This kind of frame have long life working time.
- Strong Power Light Keel Steel Roll Forming Machine,we used double bearings,so we make sure machine working low noise and more stable working.
| uncoiler | 1set |
| coil sheet guiding device | 1set |
| main roll forming system | 1set |
| punching device | 1set |
| cutting device | 1set |
| Hydraulic station | 1set |

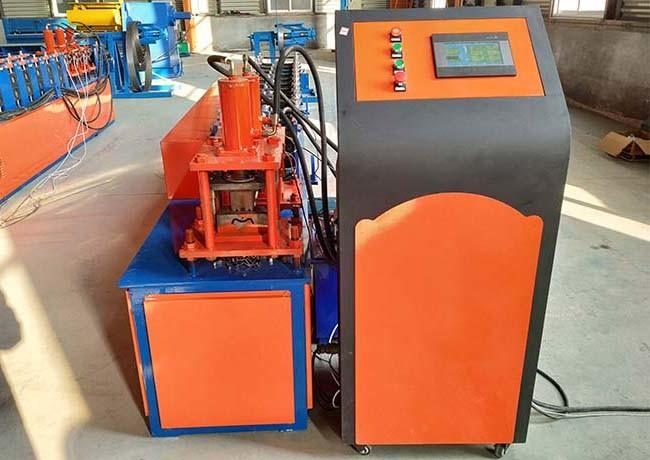

| PLC control system | 1set |
| support table | 1set |
parameters
| 1 | Suitable material | galvanized steel coil |
| 2 | Thickness of coil sheet | 0.3-0.5mm |
| 3 | Coil width | as customer's profile drawing requirement |
| 4 | Effective width | as customer's profile drawing requirement |
| 5 | Material of main frame | welded by square pipe |
| 6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
| 7 | Roller | Cr12 |
| 8 | Thickness of middle plate | Memorial archway |
| 9 | Forming station | 8+1 rows |
| 10 | Drive type | Gear |

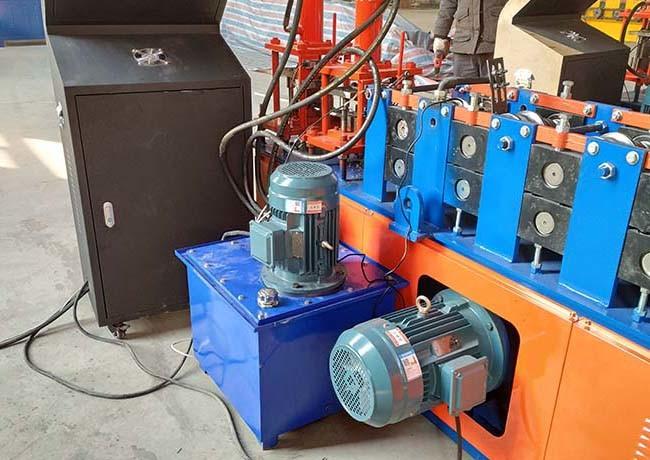

| 11 | Power of main motor | 4.0 kw, Lichao, Shanghai, with reducer |
| 12 | Servo motor | 2.2KW Touch-win |
| 13 | Forming speed | About 25-30m/min |
| 14 | Hydraulic pump station | 4.0 kw, 46# hydraulic oil |
| 15 | PLC | Touch-win,Delta |
| 16 | Material of cutting blades | Cr 12 Mov, quenching 58-62°C |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | Touch-win,Delta |
After-sales service
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
