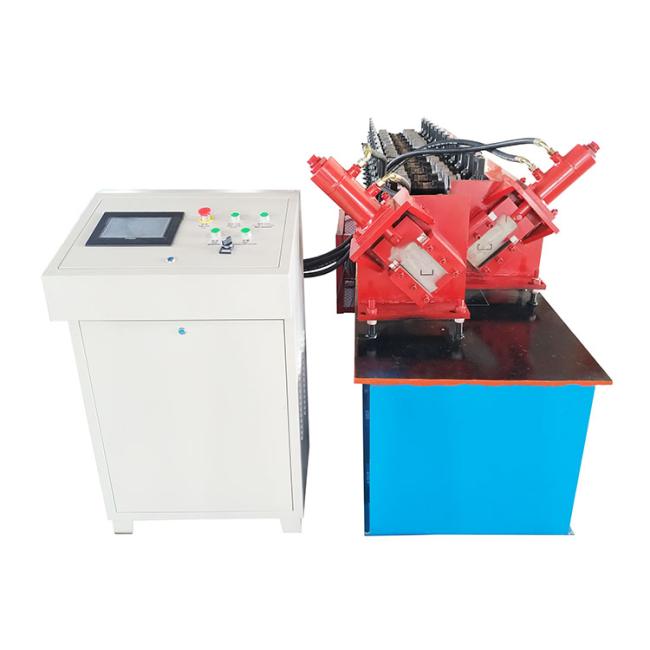

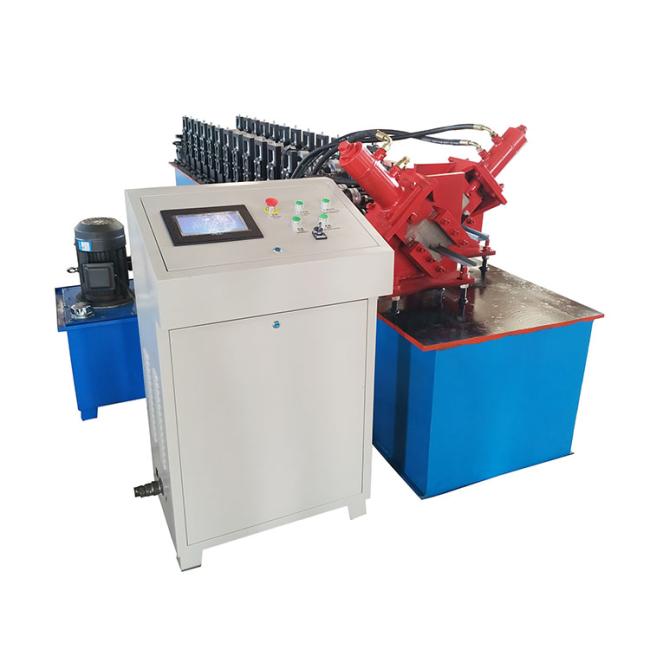

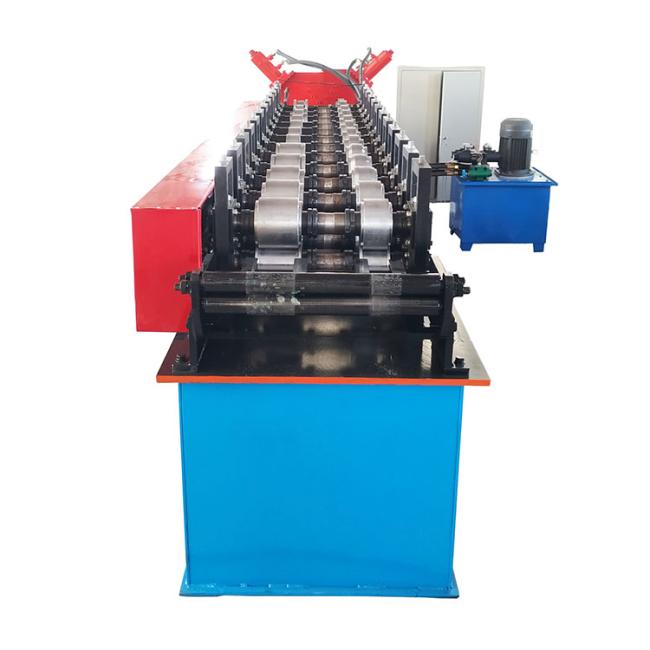

12 Rows Drywall Stud Roll Forming Machine High Performance Wear Resistant
12 Rows Drywall Stud Roll Forming Machine High Performance Wear Resistant
Product information:
Light Keel machine is a strip of material, by continuous cold rolling molding, production of complex cross-section profiles (products: light steel keel, paint keel, cassette keel, a variety of architectural profiles, steel, steel-lined door profiles, high speed protection bar, etc.) and different sizes of cold-formed, paint unit equipment, PLC control.
Application:
It can widely used on furred ceiling. After crossing the zinc the light keels long time without rust.
Characteristics:
1. Plc control system, it is save to operate machine
2. High efficiency and low price
3. Good performance and low production cost
Main parameters:
- Raw Materials Request
| 1. | Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate |
- The Host Quality Requirements:
| 1. | Color | Blue body, Red and yellow secondary | According to customer requirements |
| 2. |
Appearance size (About) |
6500mm*1510*1210mm | Excluding the console |
| 3. | Rows of rollers | 12 rows | |
| 4. | Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| 5. | Diameter of shaft | ￠50mm |
- Turn/Cut/Console Quality Requirements
| 1. | Productivity | 25m/min |
1 day=8 hours 12,000m/day |
| 2. | Cut Mode | Hydraulic forming after cutting off | |
| 3. | Cutter material | Cr12 Heat Treatment | Thick, high wear-resisting knife plate |
| 4. |
Electronic control system |
PLC, Touch Screen, Encoding counter |
