Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame
Double Profile Drywall Stud Roll Forming Machine 380V 60Hz With Memorial Gate Frame

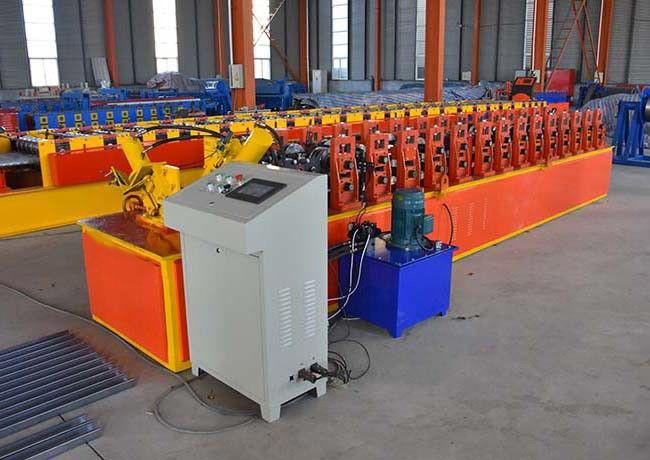

Double stud profile light steel keel roll forming machine with memorial gate frame
---- You can produce two different shap design in this one machine.
---- Memorial gate frame provide a suitable roll forming function.
---- Adjustable straighten ensure the final products in stright.
---- Hydraulic cutting system provide a stable cutting.
parameters
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.5-1 mm |
| Efficiency width | 25/30mm |
| Machine details | |
| Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 16 stations |
| Productivity | 30-35m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7700mm*1500mm*1500mm |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
Our service
1. Warranty :One year,and we will provide technical support for whole life of the equipment
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 12months free service
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
